SKU: 815002

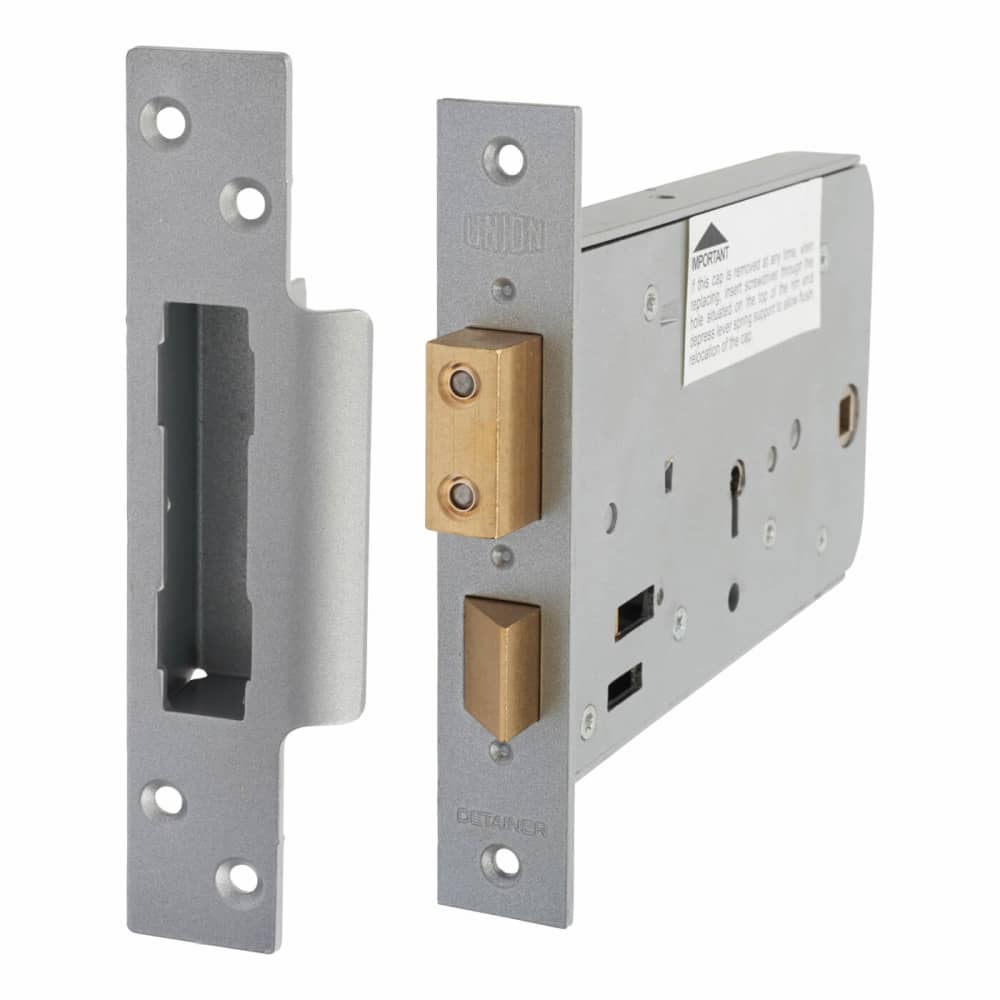

UNION 3J60 Horizontal 5 Lever High Security Sashlock - 165mm Case - 83mm Backset - Stainless Steel
0.0
(0)
Out of stock- Expected delivery: 24/08/2025
When using mortice knobs on entrance doors this is the preferred lock
Buy in bulk & save up to -5%
About this product
- When using mortice knobs on entrance doors this is the preferred lock
- Deadbolt is locked or unlocked by key from either side
- Latch bolt withdrawn by lever or knob handle from either side
- Force resistant, anti-pick and anti-saw security features
- Available with square forend and striking plate
- 14mm bolt throw
- Backset to keyway 83mm
- Backset to follower 149mm
- NOTE: Intumescent should be used to ensure adherence to fire regulations
About this product
- When using mortice knobs on entrance doors this is the preferred lock
- Deadbolt is locked or unlocked by key from either side
- Latch bolt withdrawn by lever or knob handle from either side
- Force resistant, anti-pick and anti-saw security features
- Available with square forend and striking plate
- 14mm bolt throw
- Backset to keyway 83mm
- Backset to follower 149mm
- NOTE: Intumescent should be used to ensure adherence to fire regulations
Specification & Documentation
Backset (mm)
83
Case Size (mm)
165
Centres (mm)
67
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Option
5 Lever
Size (mm)
165 x 98
Type
Sashlock
Keyed Alike
No
Profile
Square
Material
Mild Steel
Anti Bump
No
Anti Drill
No
Anti Pick
No
Anti Pull
No
British Standard
Yes
CE Rated
No
Certifire
No
Fire Rating
30/60
Secured by Design
No
UKCA Approved
No
Standards
BS EN 1634-1
Pack Quantity
1
Reviews
Questions
Anonymous - 2 years ago
Category Management
Hello, I have spoken with the supplier and they have advised they can do this currently. Please give a call to our contact centre team so we can advise the best way to order this as a special order. Thank you.
