SKU: 858348

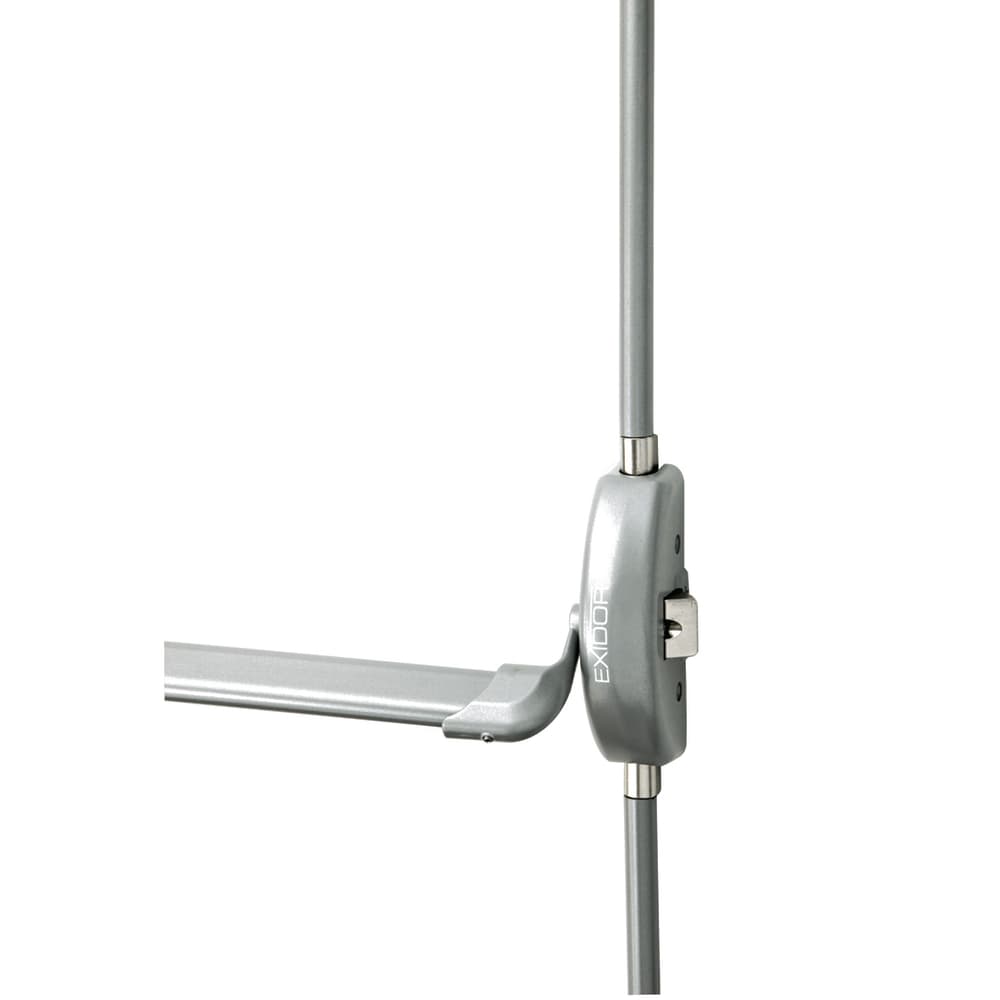

Exidor 503A-B/AD Single Door 3 Point Panic Bolt - Metal Door
0.0
(0)
16 in stock
For public areas
Select Application
Select
Select Locking Points
Select
Buy in bulk & save up to 5%
Free returns within 28 days
About this product
- For public areas
- BS EN 1125: A panic application where the exit door is used by the public and provides "safe and effective escape through the doorway with minimum effort and without prior knowledge of operation". For example: theatres, shops, schools, hospitals and cinemas
- For non-public areas such as offices, select products that are BS EN 179 applicable
- Suitable for use on single aluminium door applications
- Slim design for narrow stiles
- 3 point locking for increased security
- Anti-thrust device, prevents unauthorised retraction of the bolts
- Suitable for doors up to 2440mm high x 1220mm wide
- Non handed to suit both left and right handed doors
About this product
- For public areas
- BS EN 1125: A panic application where the exit door is used by the public and provides "safe and effective escape through the doorway with minimum effort and without prior knowledge of operation". For example: theatres, shops, schools, hospitals and cinemas
- For non-public areas such as offices, select products that are BS EN 179 applicable
- Suitable for use on single aluminium door applications
- Slim design for narrow stiles
- 3 point locking for increased security
- Anti-thrust device, prevents unauthorised retraction of the bolts
- Suitable for doors up to 2440mm high x 1220mm wide
- Non handed to suit both left and right handed doors
Specification & Documentation
Application
Metal
Environment
Public
Finish
Silver
Locking Points
3
Max Door Height (mm)
2440
Max Door Width (mm)
1220
To Suit
Single Door
Type
Bolt
Material
Zinc
Pack Quantity
1
Reviews
Questions
Which outdoor locking device can we use with this product
Kane - 6 months ago
Product Management
The Exidor 526EC - Oval Knob (710995) and the Exidor 525ED - Lever Handle (329284) will work with this push bar.
Was this question helpful?
