SKU: 602982
ECLISSE Single Fire Pocket Door Kit - FD30 - 100mm Finished Wall Thickness - 762 x 1981mm Door Size
3.9
(18)
17 in stock

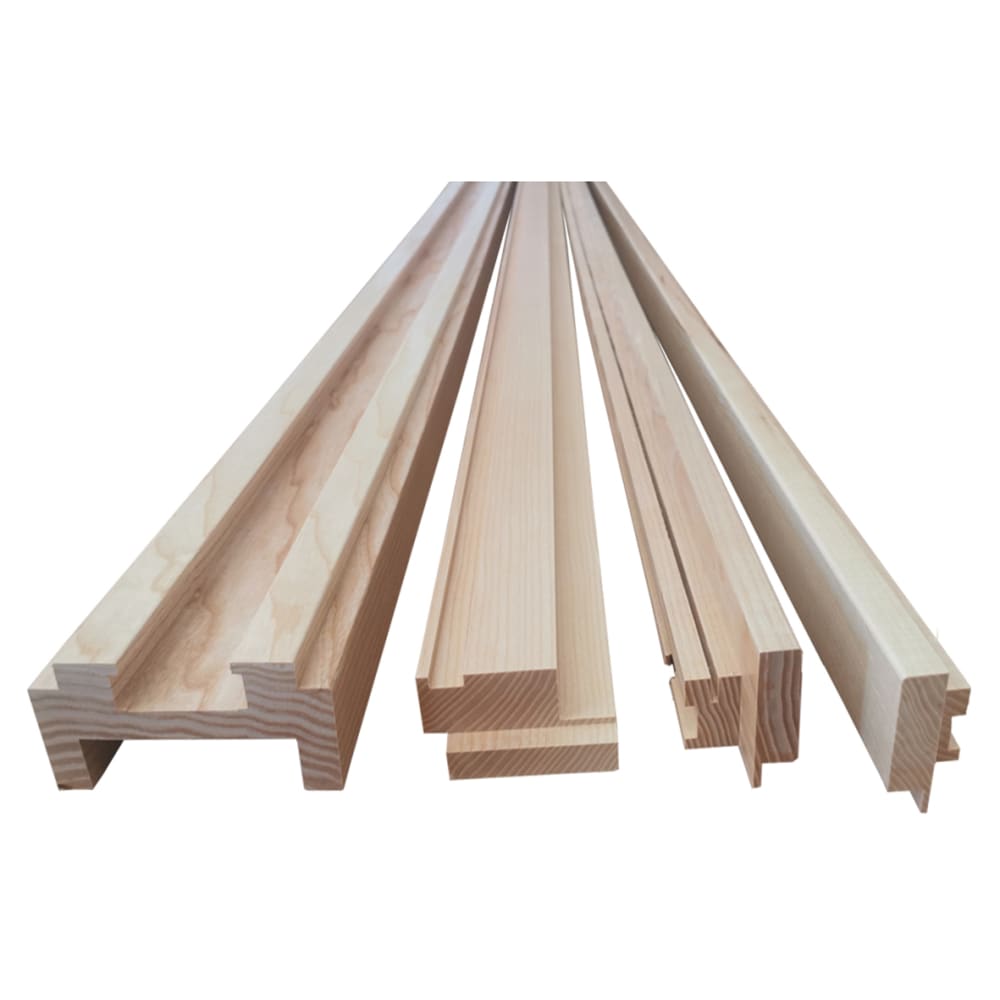

The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
This item carries a £4.95 large item surcharge - x1 surcharge per order!
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use

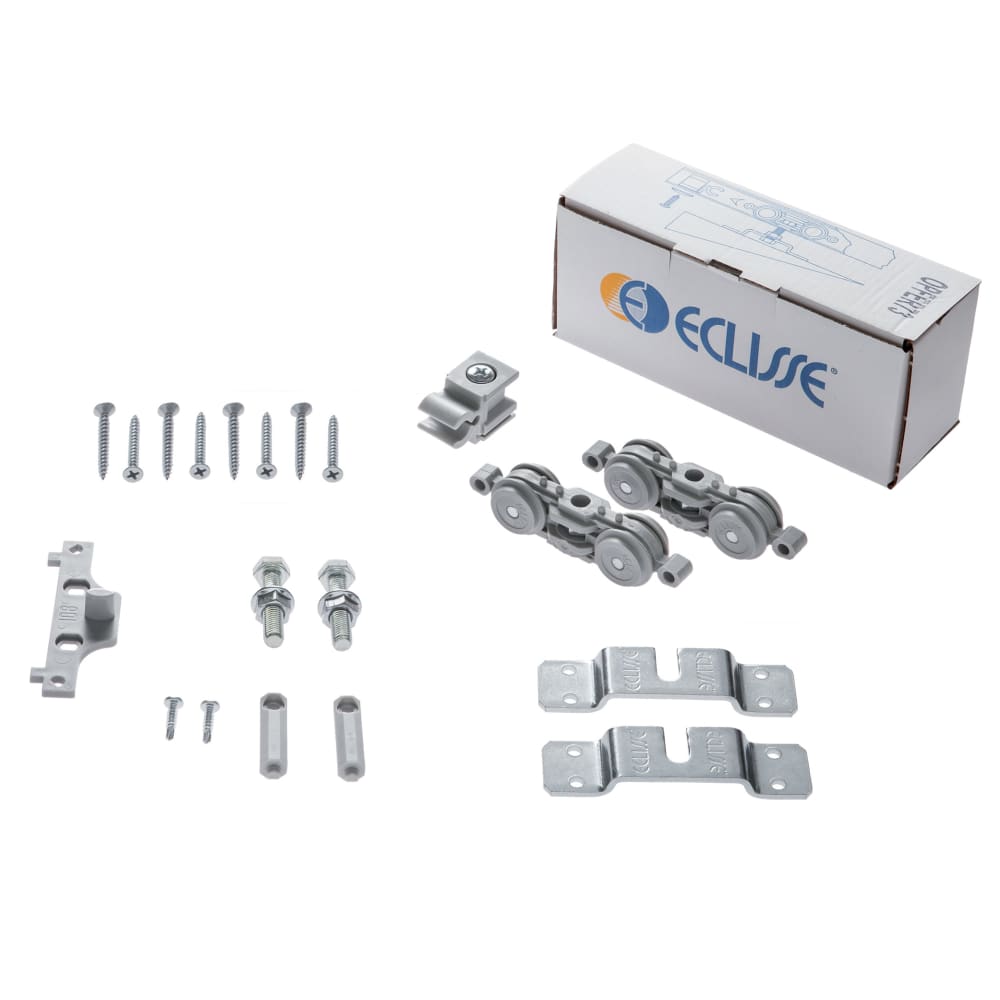

- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee
About this product
- The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
- Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
- Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
- Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
- Requires 15 x 4mm Intumescent strips, sold separately search for ‘plain intumescent strip’ on our website
- Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
- Runners are tested to 100,000 cycles, approximately 25 years on average use
- Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave
- Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
- Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
- To be installed at finished floor level
- 15 year guarantee

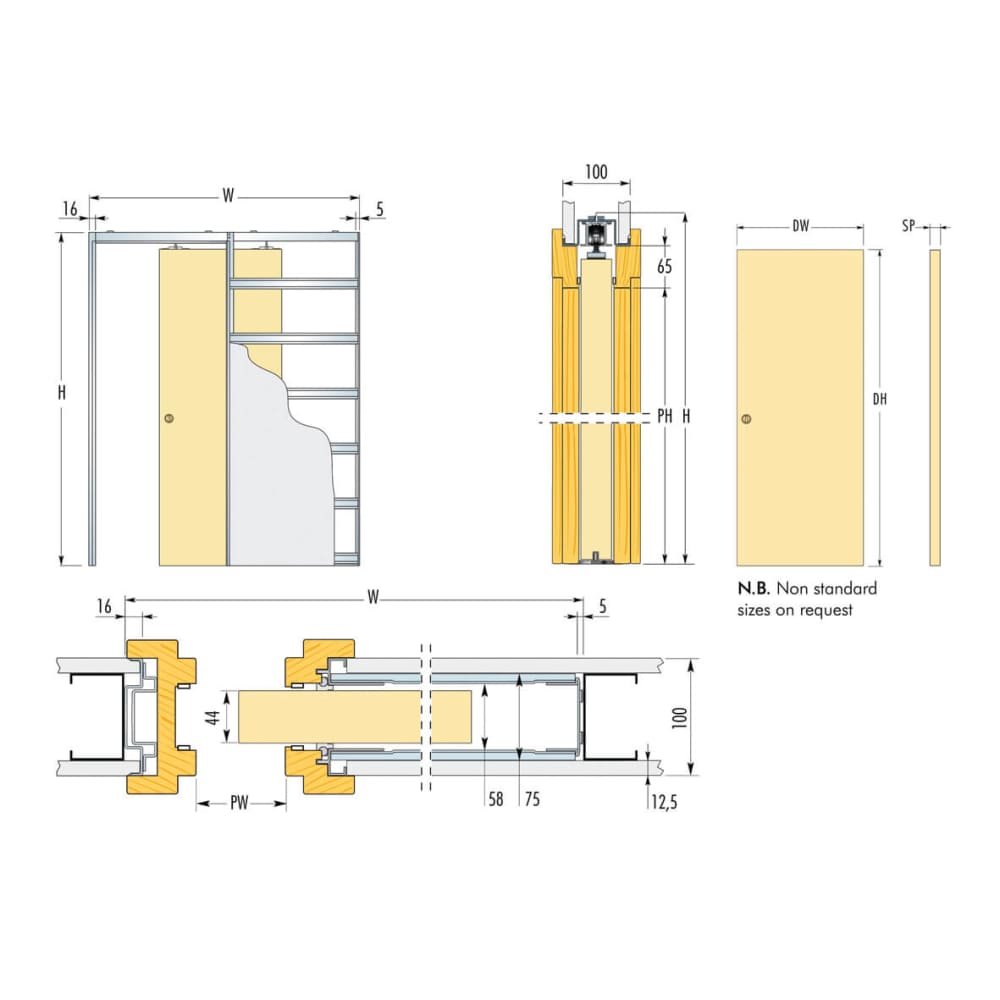

Specification & Documentation
Door Panel Size W x H (mm)
762 x 1981
Finished Wall Thickness (mm)
100
Fire Rating
30
Max Door Weight (kg)
80
Max Passage Size W x H (mm)
715 x 1951
No of Doors
1
Option
Single Pocket Door Kit
Overall Dimensions W x H (mm)
1631 x 2056
Suit Door Thickness (mm)
44
Type
Single Pocket Door Kit
Material
Galvanised Steel
Pack Quantity
1
