SKU: 398960

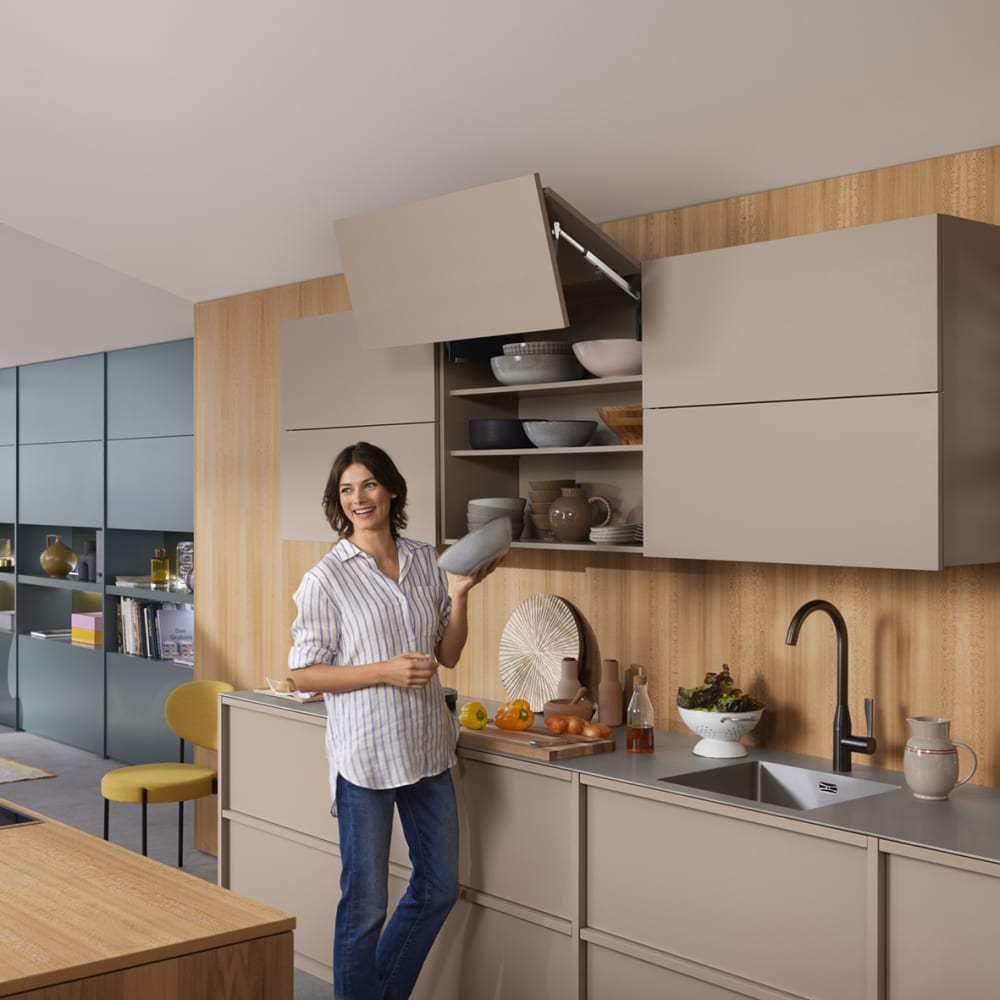

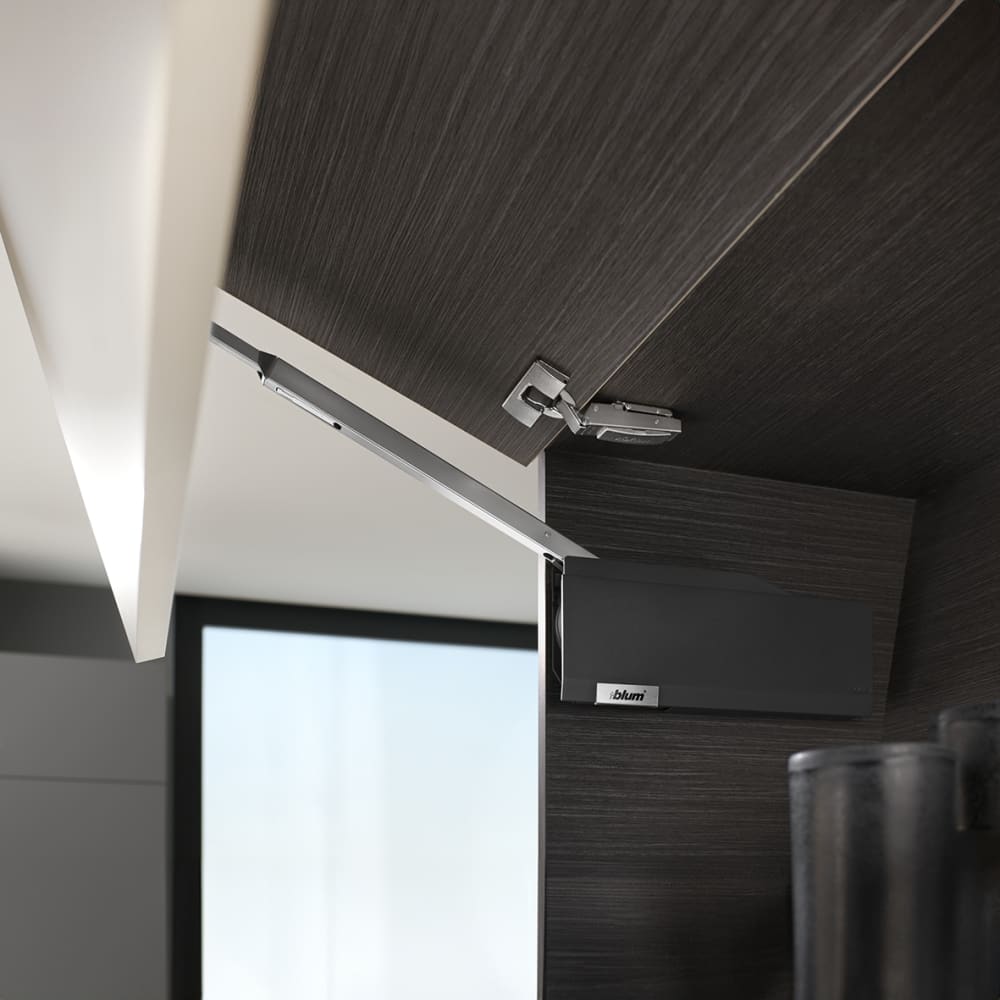

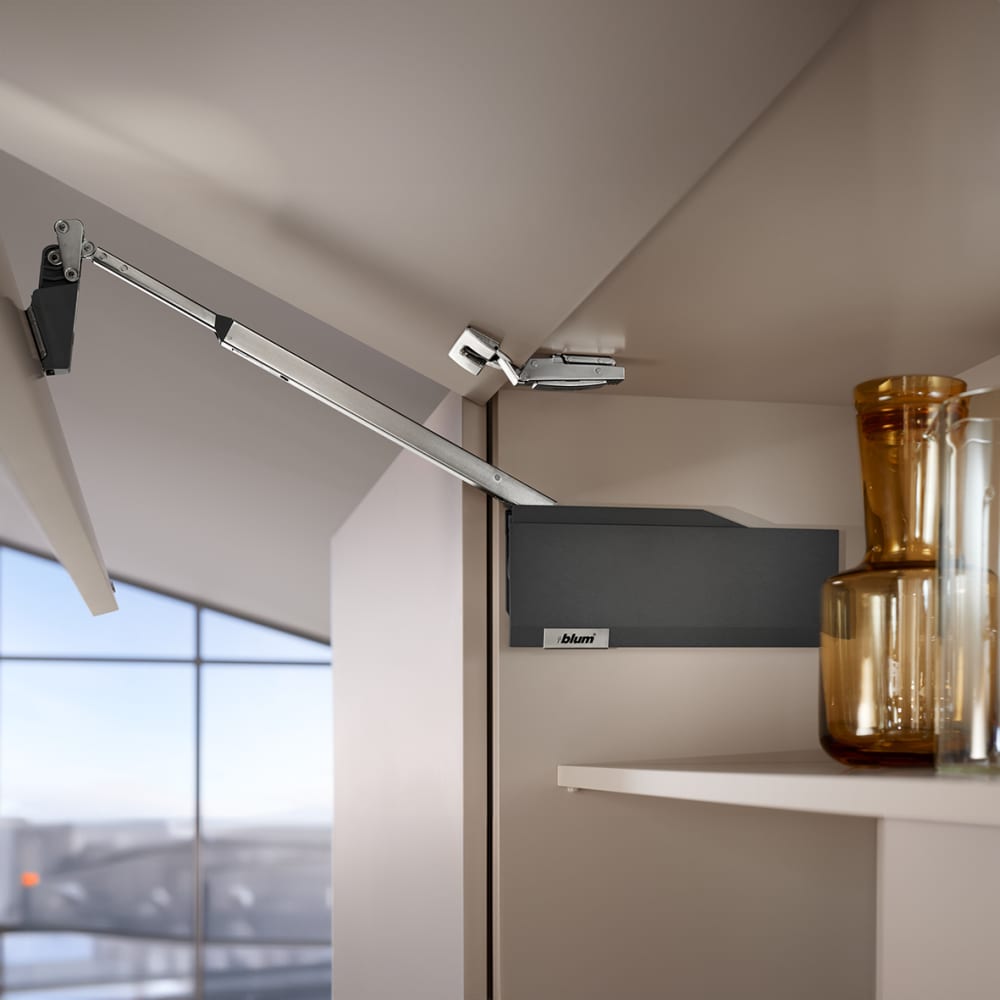

Blum AVENTOS Bi-Fold HF - Cabinet Door Lift Mechanism - Medium Duty - Power Factor (LF) 2700-13500
2.0
(1)
46 in stock
Suitable for larger cabinets - 480-1200mm height
Select Option
Select
Select Power Factor
Select
Free returns within 28 days
About this product
- Suitable for larger cabinets - 480-1200mm height
- Cabinet must have a minimum of 264mm interior depth
- Can accommodate cabinet widths up to 1800mm
- Cabinet lift system includes BLUMOTION soft close
- Power factor is per pair
- Integrated opening angle stop
- Standardised positioning of the lift mechanism and front fixing bracket
- Power factor calculation: Cabinet height (mm) x door(s) weight including any handles (kg)
- Kit includes: light duty Aventos HF mechanism and Aventos HF cover caps
- Hinge pack must be ordered separately
- Telescopic arm must be ordered separately (Suitable for cabinets 600-910mm high)
About this product
- Suitable for larger cabinets - 480-1200mm height
- Cabinet must have a minimum of 264mm interior depth
- Can accommodate cabinet widths up to 1800mm
- Cabinet lift system includes BLUMOTION soft close
- Power factor is per pair
- Integrated opening angle stop
- Standardised positioning of the lift mechanism and front fixing bracket
- Power factor calculation: Cabinet height (mm) x door(s) weight including any handles (kg)
- Kit includes: light duty Aventos HF mechanism and Aventos HF cover caps
- Hinge pack must be ordered separately
- Telescopic arm must be ordered separately (Suitable for cabinets 600-910mm high)
Specification & Documentation
Finish
Zinc Plated
Material
Mild Steel
Option
Lift Mechanism
Power Factor
2700 - 13500
Range
AVENTOS HF
Soft Close
Yes
Type
Flipper/Lift Mechanism
Pack Quantity
2
