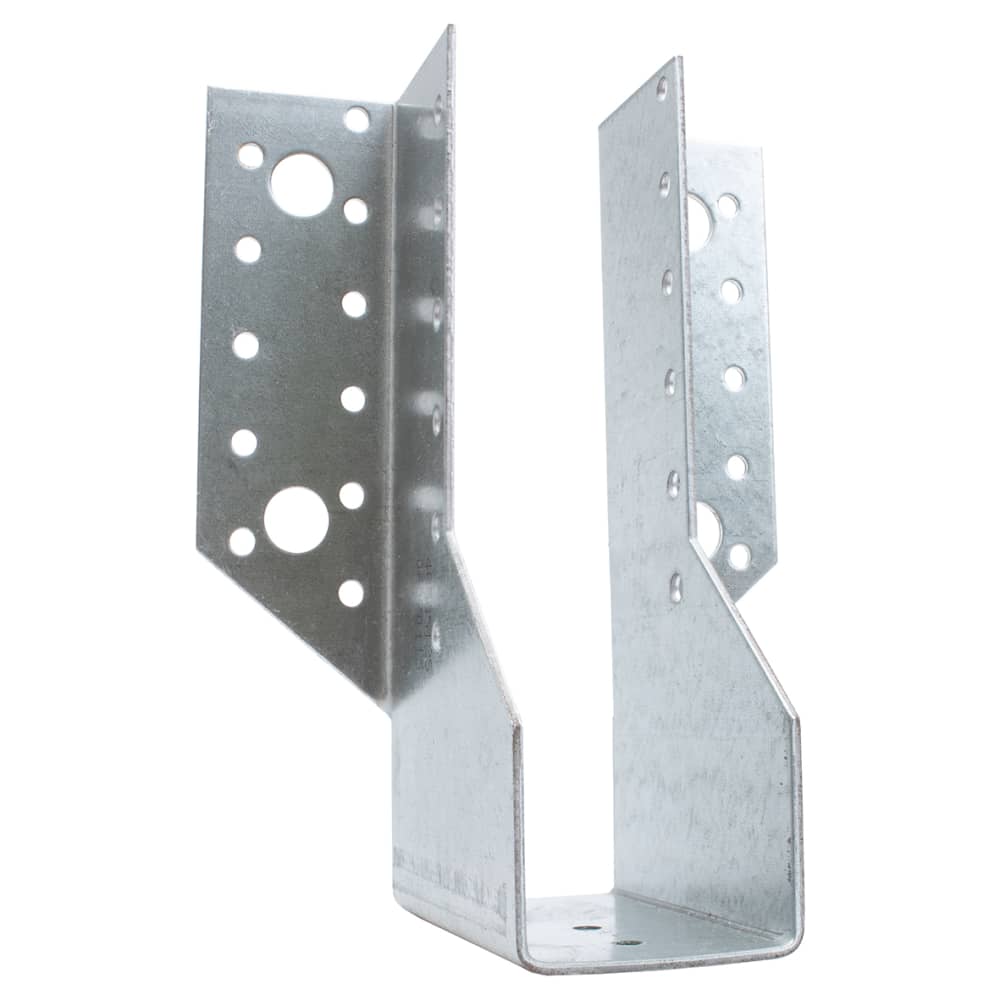

Simpson Strong Tie Heavy Duty Face Fixed U Joist Hanger - 50mm Width - 100mm Height
0.0
(0)
45 in stock
Heavy-duty face fixed 'U' joist hangers (part code SAE250/50/2) designed for applications requiring additional strength
Free returns within 28 days
About this product
- Heavy-duty face fixed 'U' joist hangers (part code SAE250/50/2) designed for applications requiring additional strength

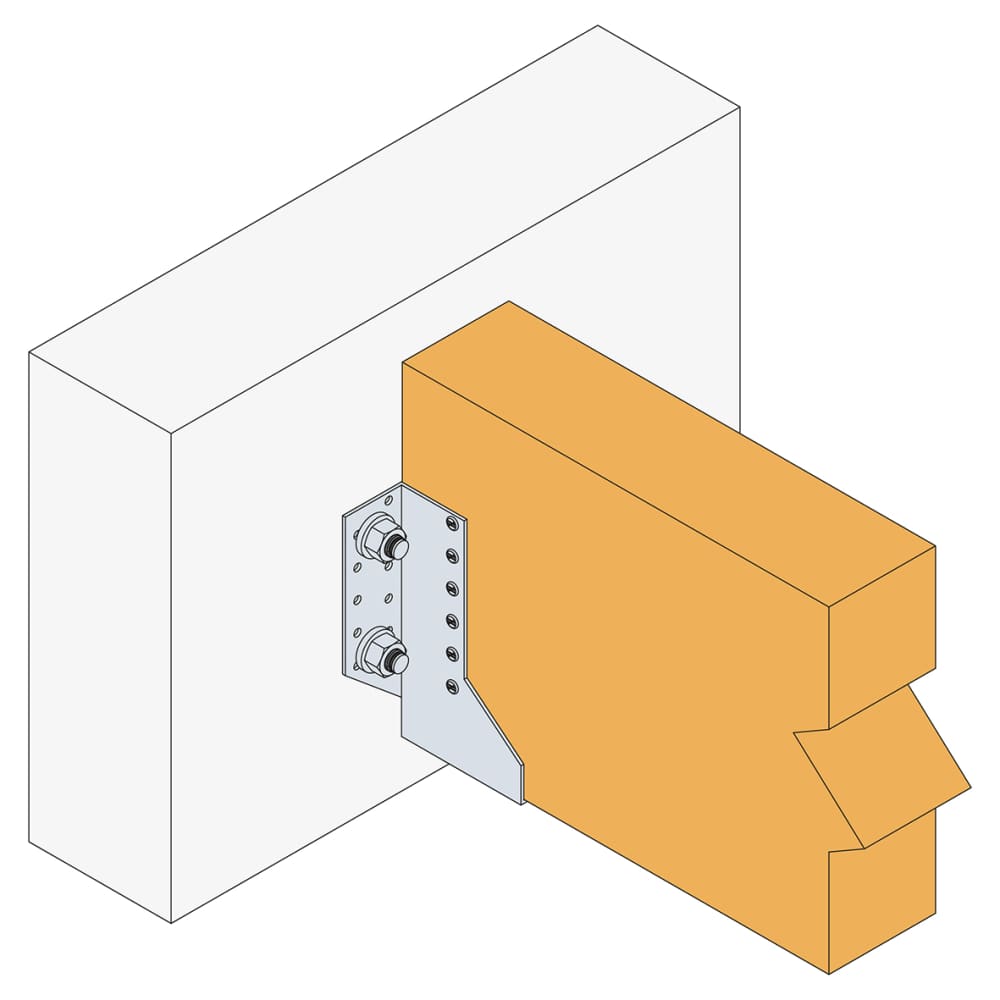

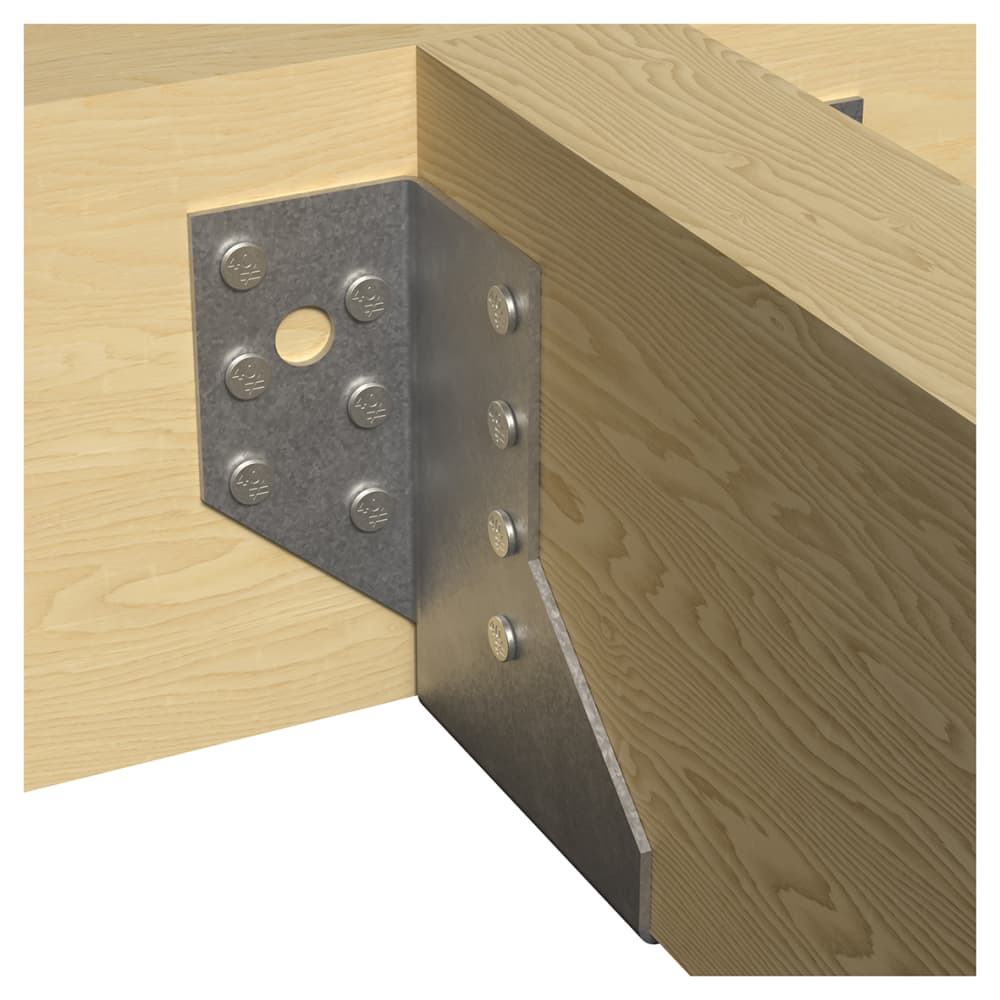

- Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face
- For use with solid sawn timber joists, steel and purlins
- Timber bolted capacity to be determined according to the relevant standards
- The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
- Made from pre-galvanised mild steel
About this product
- Heavy-duty face fixed 'U' joist hangers (part code SAE250/50/2) designed for applications requiring additional strength
- Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face
- For use with solid sawn timber joists, steel and purlins
- Timber bolted capacity to be determined according to the relevant standards
- The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
- Made from pre-galvanised mild steel
Specification & Documentation
CE Rated
Yes
Duty
Heavy
Finish
Galvanised
Height (mm)
100
Material
Mild Steel
Option
Face Fixed U
Pack Quantity
1
Size (mm)
100 x 50 x 2
Thickness (mm)
2
Type
Joist Hanger
Width (mm)
50
