SKU: 427150

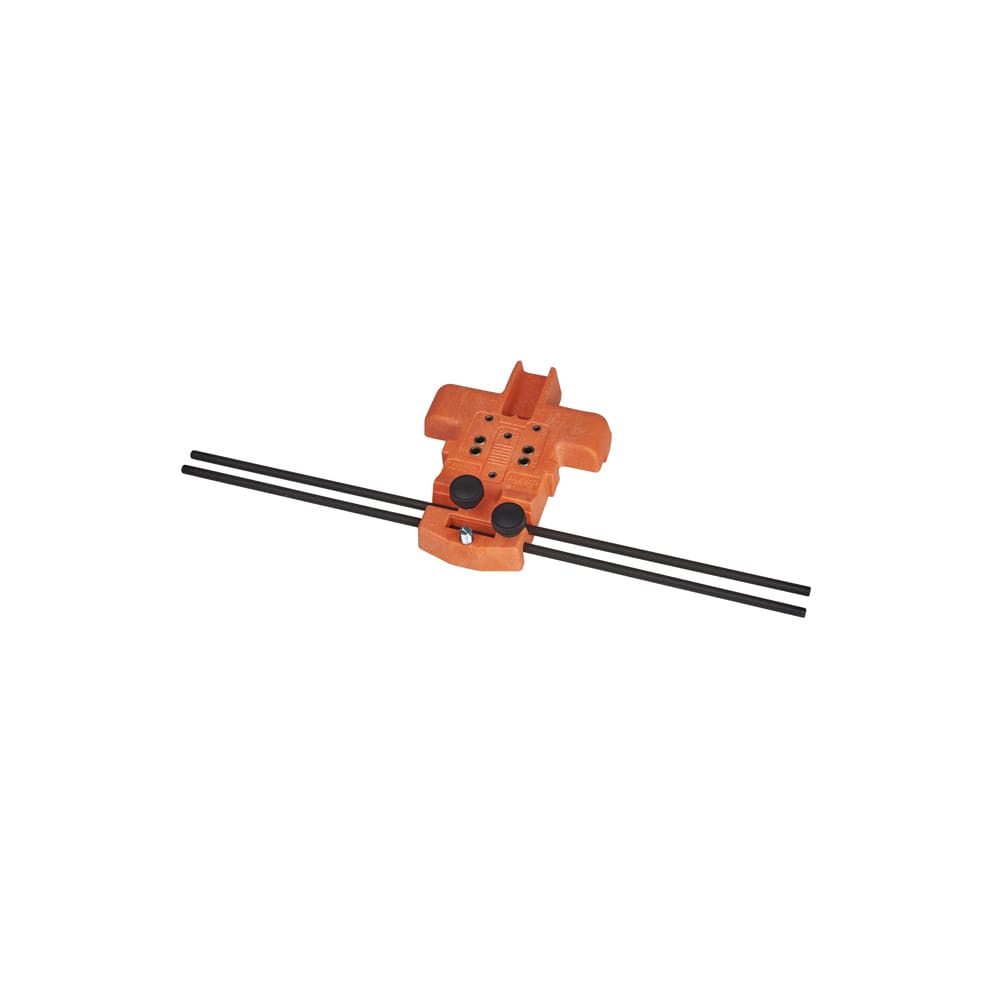

Blumotion and Mounting Plate Drilling Template
5.0
(2)
4 in stock
Multi-purpose Blum jig
Free returns within 28 days
About this product
- Multi-purpose Blum jig
- For use with Blumotion piston & hinge mounting plates
- Suitable for drilling TIP-ON for doors
- Can be used to drill cruciform & inline mounting plate positions for CLIP Top, CLIP and modul hinges
- Pre-set repeating drilling positions using the stop rod included
- Not suitable for die-cast horizontal plates (22mm)
- Contains drilling template and 3 x drilling depth spacers (2.5/5/10mm)
About this product
- Multi-purpose Blum jig
- For use with Blumotion piston & hinge mounting plates
- Suitable for drilling TIP-ON for doors
- Can be used to drill cruciform & inline mounting plate positions for CLIP Top, CLIP and modul hinges
- Pre-set repeating drilling positions using the stop rod included
- Not suitable for die-cast horizontal plates (22mm)
- Contains drilling template and 3 x drilling depth spacers (2.5/5/10mm)
Specification & Documentation
Option
Drilling Template - Blumotion/ TIP-ON
Type
Drilling Template
Range
CLIP top
Material
Nylon
Pack Quantity
1
