SKU: 514890

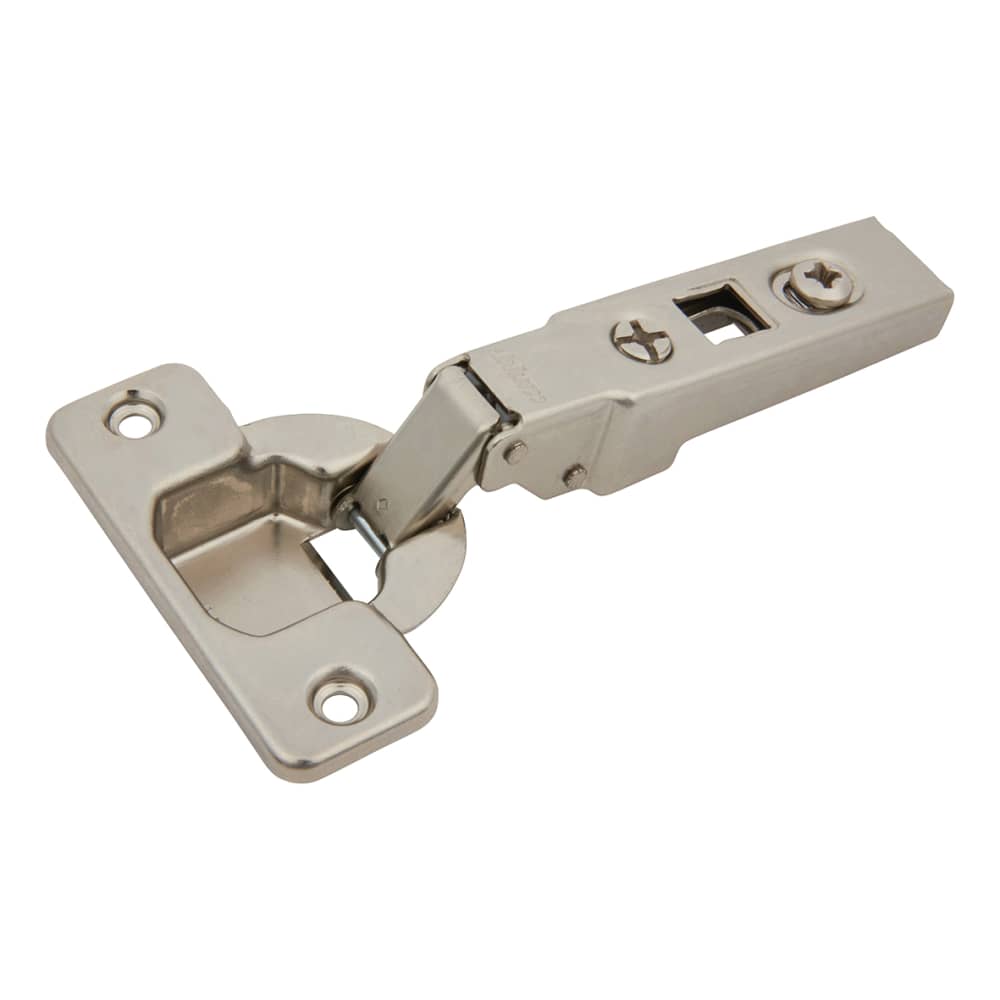

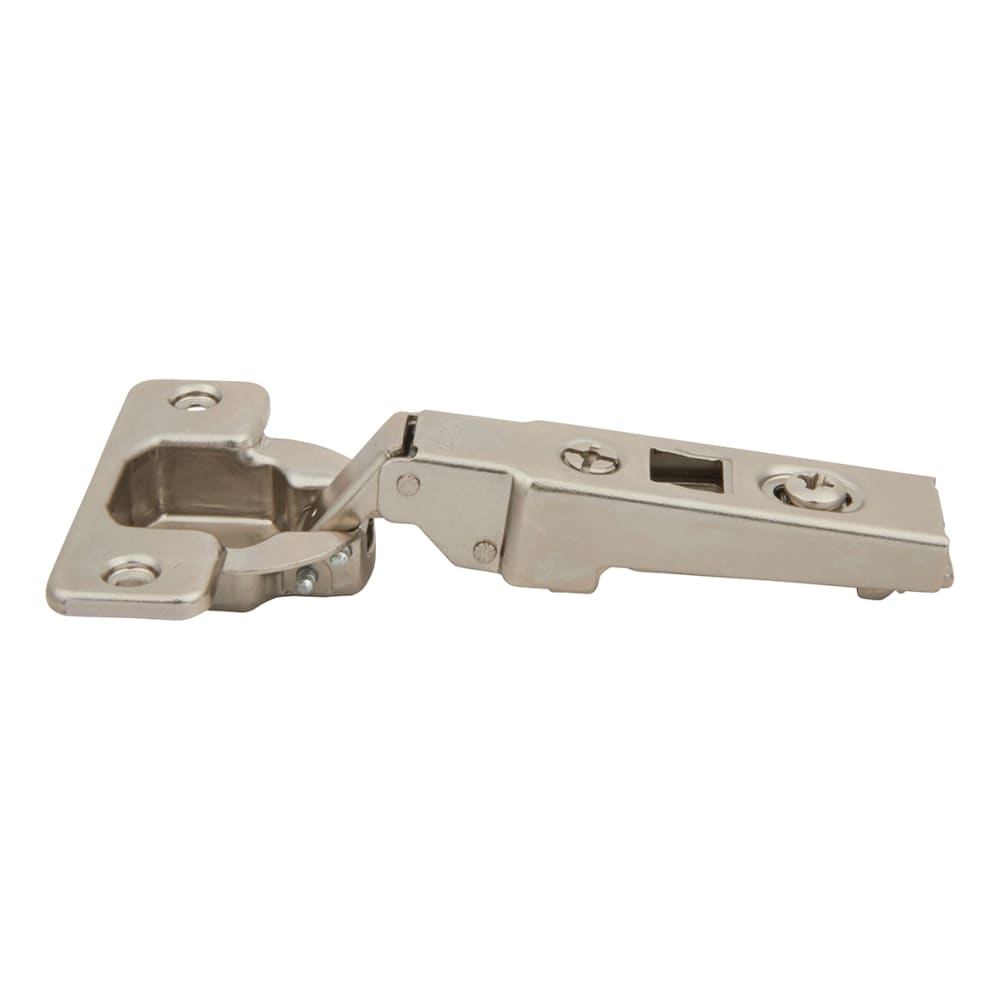

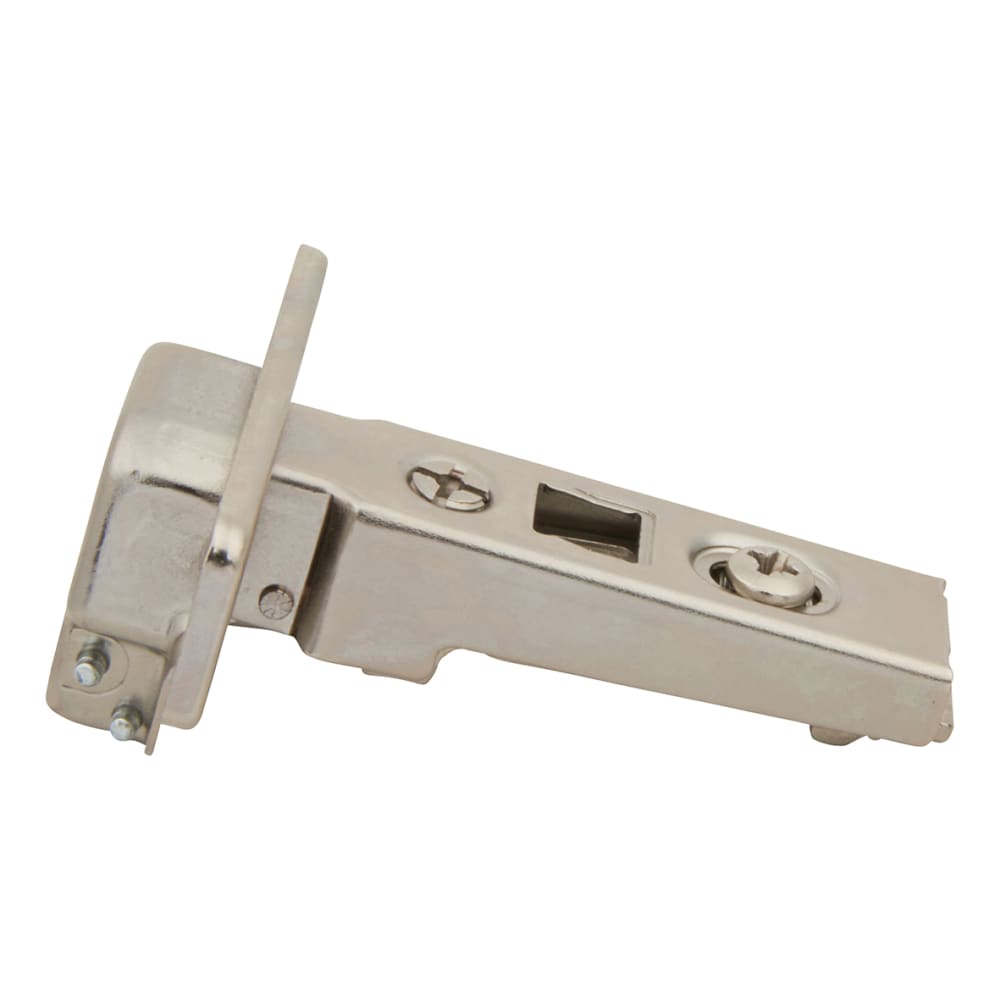

Blum CLIP Cabinet Hinge Pack with 0mm Mounting Plates - 100° - Sprung - Overlay - Zinc Plated - Pair
4.7
(26)
182 in stock
Blum Part Code: 71M2550
Select Option
Select Application
Select Sprung
Buy in bulk & save up to -10%
About this product
- Blum Part Code: 71M2550
- Ideal for use on kitchen, bathroom, & household cabinets
- Overlay - where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- CLIP - When attached the hinge will click in to place & has a three-way adjustment.
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately

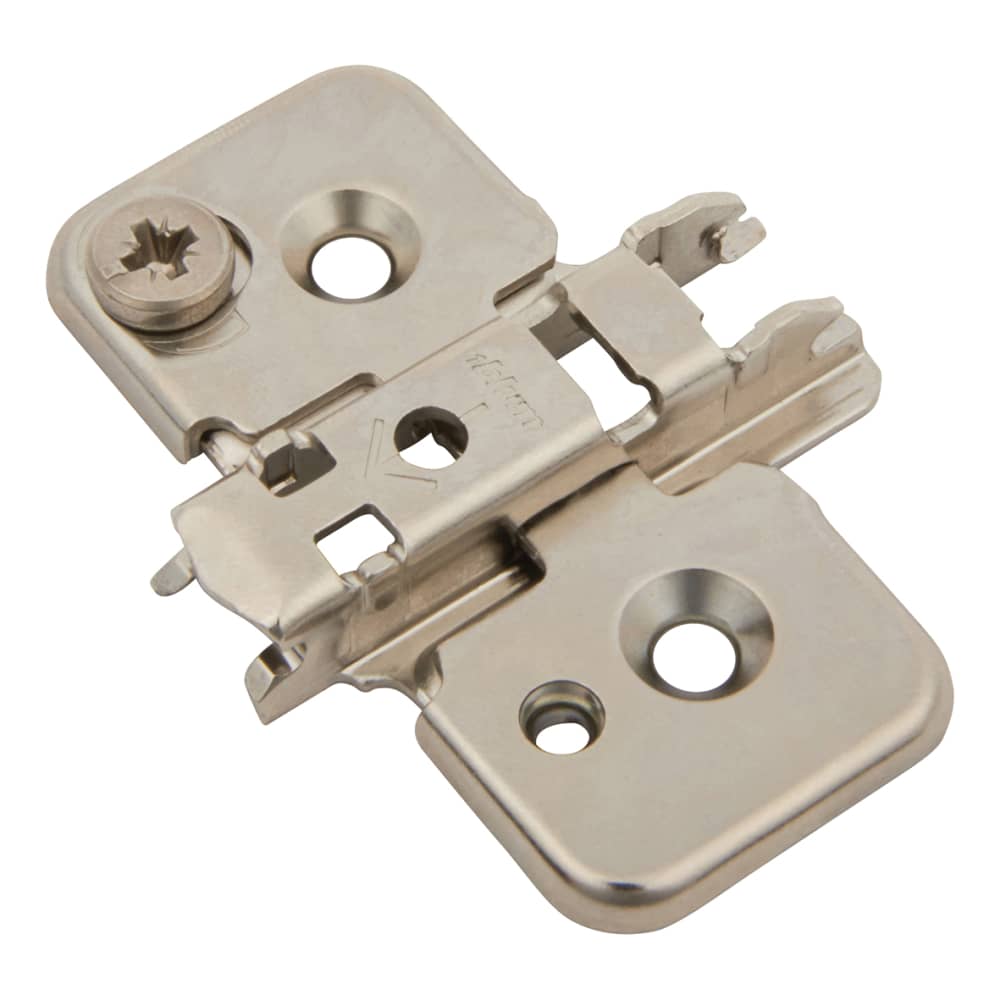

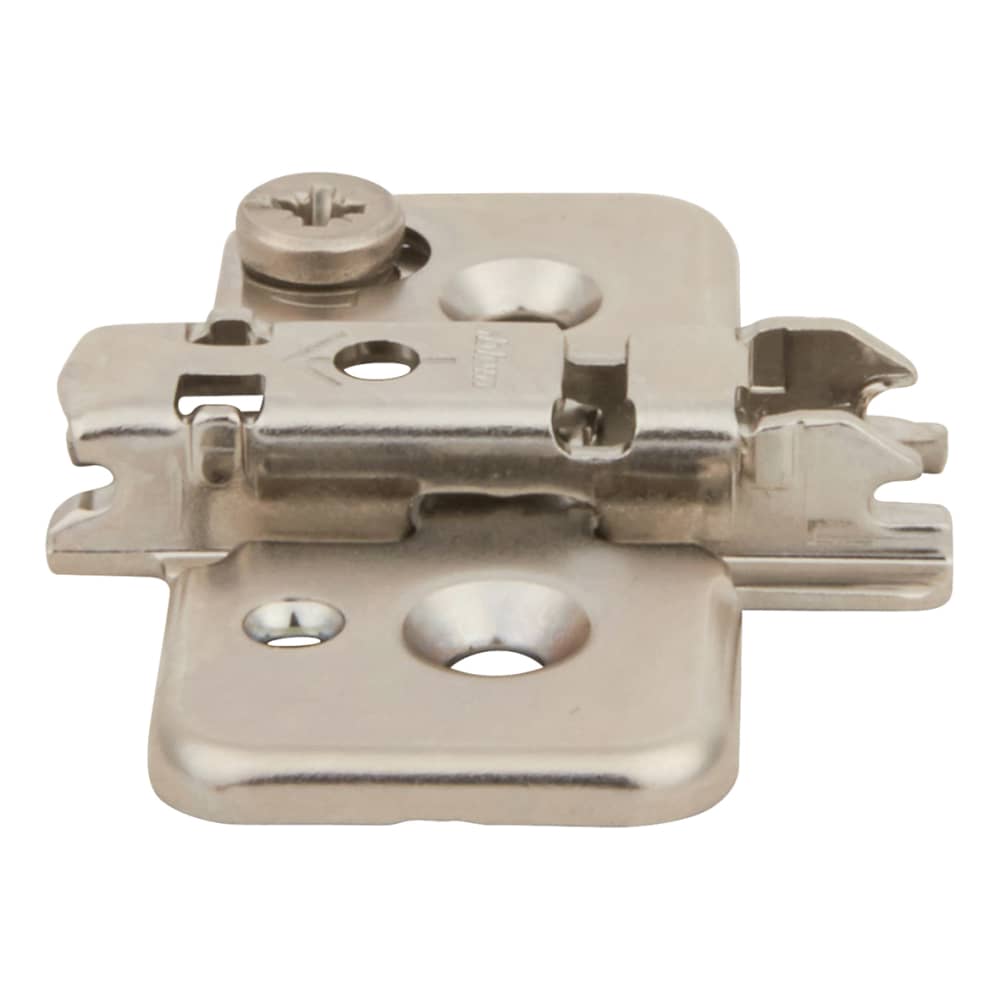

- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
About this product
- Blum Part Code: 71M2550
- Ideal for use on kitchen, bathroom, & household cabinets
- Overlay - where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- CLIP - When attached the hinge will click in to place & has a three-way adjustment.
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
+3/-1
Finish
Zinc Plated
Fixing Method
Clip On
Height Adjustment (mm)
+/-2
Option
Hinge and Mounting Plate Set
Range
CLIP
Spacing (mm)
0
Sprung
Sprung
Suit Carcass (mm)
18
Type
Concealed Kitchen Cabinet Hinge
MPN
7979613 / 2364043
Material
Mild Steel
Pack Quantity
2
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
GaryR - 3 years ago
Reassuring Blum quality
I`m sure I`ve written this before but I just like Blum quality; fit and forget. I`ve never seen a saggy, worn Blum hinge. Plenty of unbranded ones though.
Was this review helpful?
Verified customer
Martin6891 - 4 years ago
Nearly a 5
Very good service delivered quickly just spoilt it that the hinges don't come with screws
Was this review helpful?
Verified customer
Eddie Oag - 5 years ago
Excellent replacement hinges.
Bought these to replace the tired and Loose hinges on one kitchen cupboard door. Simple to replace and just click in place, usual adjustment screws.
Was this review helpful?
Verified customer
Ovidiu Cindea - 5 years ago
Best hinges out there
I’ve been using Blum hinges for the last 10 years without any problems. I will keep using them.
Was this review helpful?
Verified customer
AED1 - 5 years ago
Simply the best
I bought this because the old hinge spring was not strong enough to close door with bin attached. This hinge worked perfectly. Blum simply the best and worth every penny
Was this review helpful?
Verified customer
