SKU: 816528
Stormguard Trimline 25 3-Part Threshold - 914mm Length - Inward/Outward Opening Doors - Mill Silver
4.5
(20)
17 in stock
For inward and outward opening single and double doors
Select Finish
About this product
- For inward and outward opening single and double doors

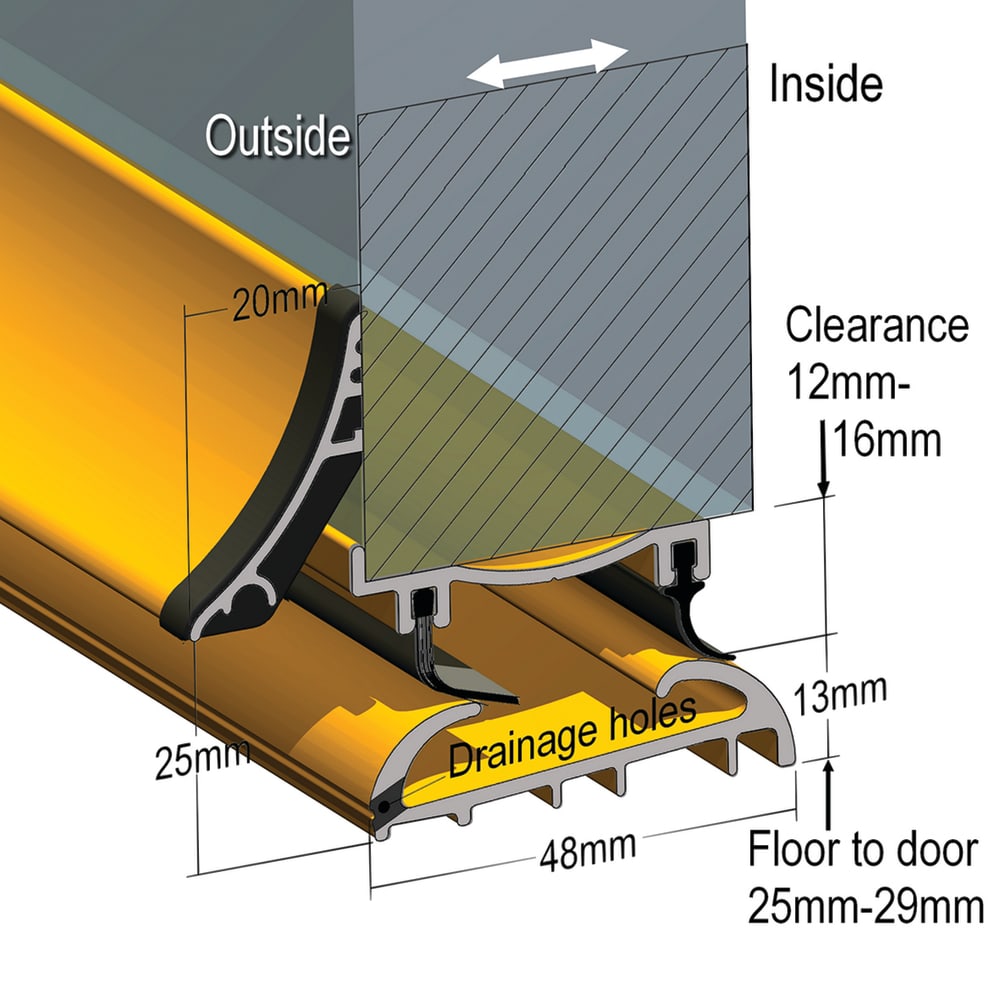

- Suitable for floor to door gap less than 29mm - minimum gap 25mm, optimum gap 27mm
- Designed to fit onto a subsill or directly onto a threshold
- Excellent fitting tolerances up to 4mm, 13.5mm profile
- Curved upstands on the front and rear facilitate access for wheelchairs and prams
- Nitrile draught seal fitted to rear, polypropylene brush strip fitted to front
About this product
- For inward and outward opening single and double doors
- Suitable for floor to door gap less than 29mm - minimum gap 25mm, optimum gap 27mm
- Designed to fit onto a subsill or directly onto a threshold
- Excellent fitting tolerances up to 4mm, 13.5mm profile
- Curved upstands on the front and rear facilitate access for wheelchairs and prams
- Nitrile draught seal fitted to rear, polypropylene brush strip fitted to front
Specification & Documentation
DocM
Yes
Door Opening
Inward/Outward Opening
Equality Act Compliant
Yes
Finish
Mill Silver
Seal Gap Range
25-29mm
Size (mm)
914 x 48 x 25
Type
Thresholds
Width (mm)
48
Length (mm)
914
Material
Aluminium
Pack Quantity
1
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Anonymous - 2 years ago
Great Supplier
Easy to buy from, very speedy delivery, great product
Was this review helpful?
Verified customer
PhilDIY - 4 years ago
Not quite what I thought I was purchasing.
The photo of the product is correct but if you purchased on the basis of looking at the fitting instructions the item you receive is different to that explained in the fitting instructions. The rain drip shield is a separate part to the draft strip fitted to the bottom of the door. The instructions show it a a one piece extrusion.
Was this review helpful?
Verified customer
Time is money - 5 years ago
Super quick delivery
Needed this in a hurry and was amazed how quickly the item arrived. Ordered late evening, and it was on site next day mid morning......the product itself is good quality, works well, looks smart and is easy to fit, but only if you measure twice, cut once and are accurate with your measuring and setting up. It’s a quality product with tight tolerances when it comes to fitting, but fit it right, and it will reward you with a good seal that keeps out the wind and rain. Also because it doesn’t rely on sealing against the bottom of the bare door, it is great for fitting to older doors that have become worn along their bottom edge.
Was this review helpful?
Verified customer
Anonymous - 5 years ago
Perfect replacement
bought to replace a brass coloured one . Out of the wrapper cut to size,and looks great . Great delivery time too. Thanks 0
Was this review helpful?
Verified customer
Leigh243 - 5 years ago
Old doors.
Ive fitted a few of these supplied by ironmongery direct. They are great for draughty doors especially on the sea front.
Was this review helpful?
Verified customer
