SKU: 551892

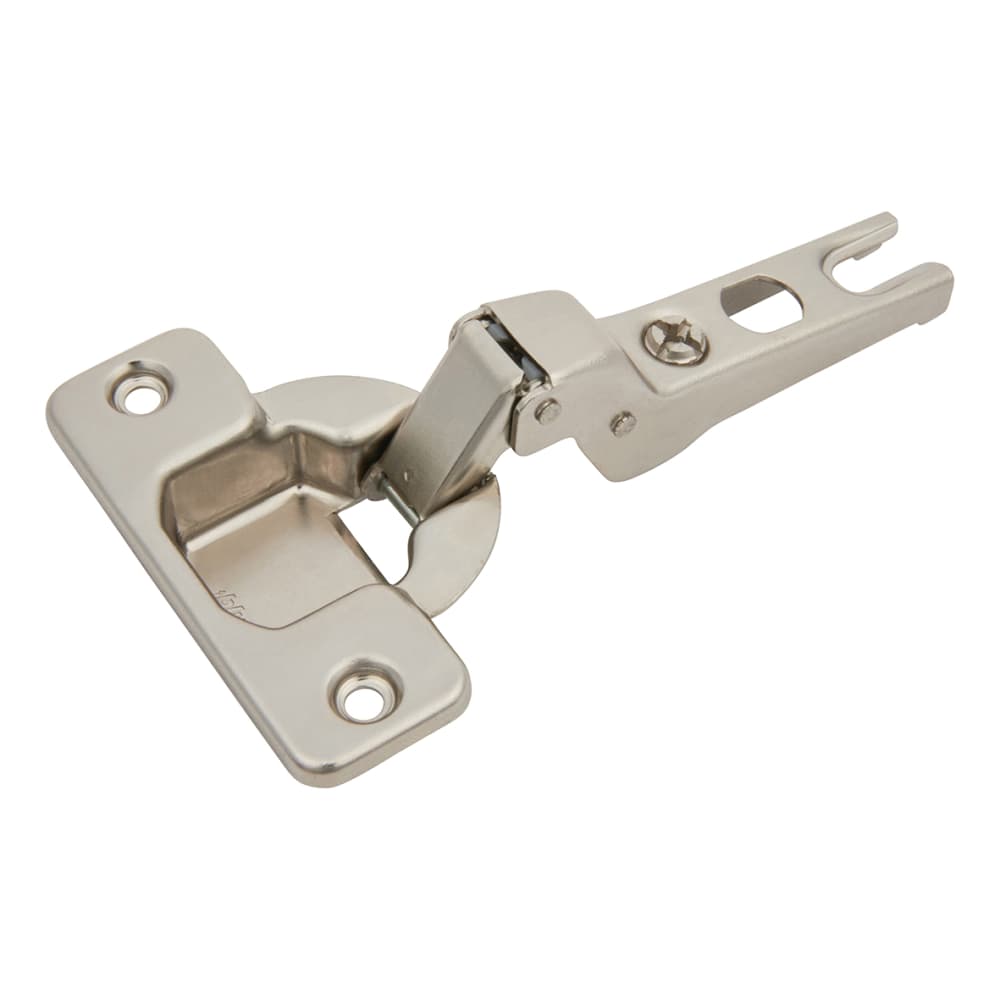

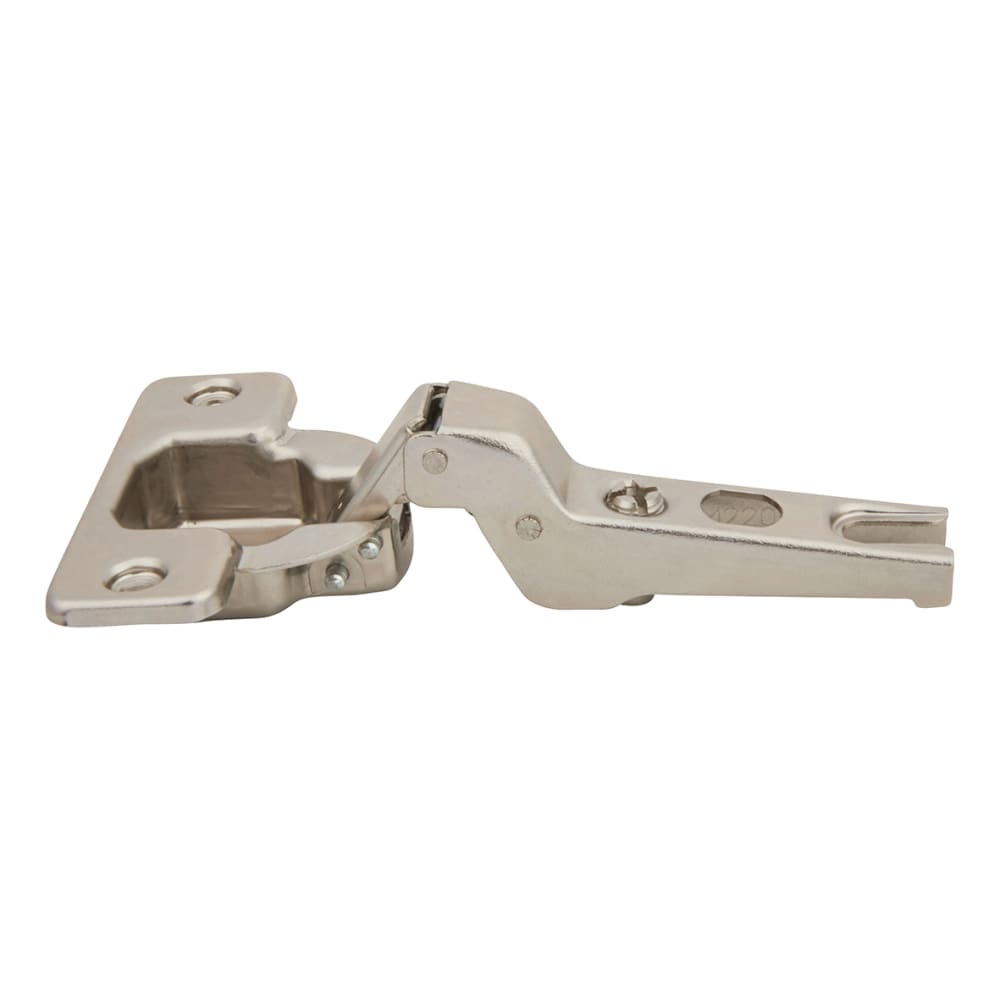

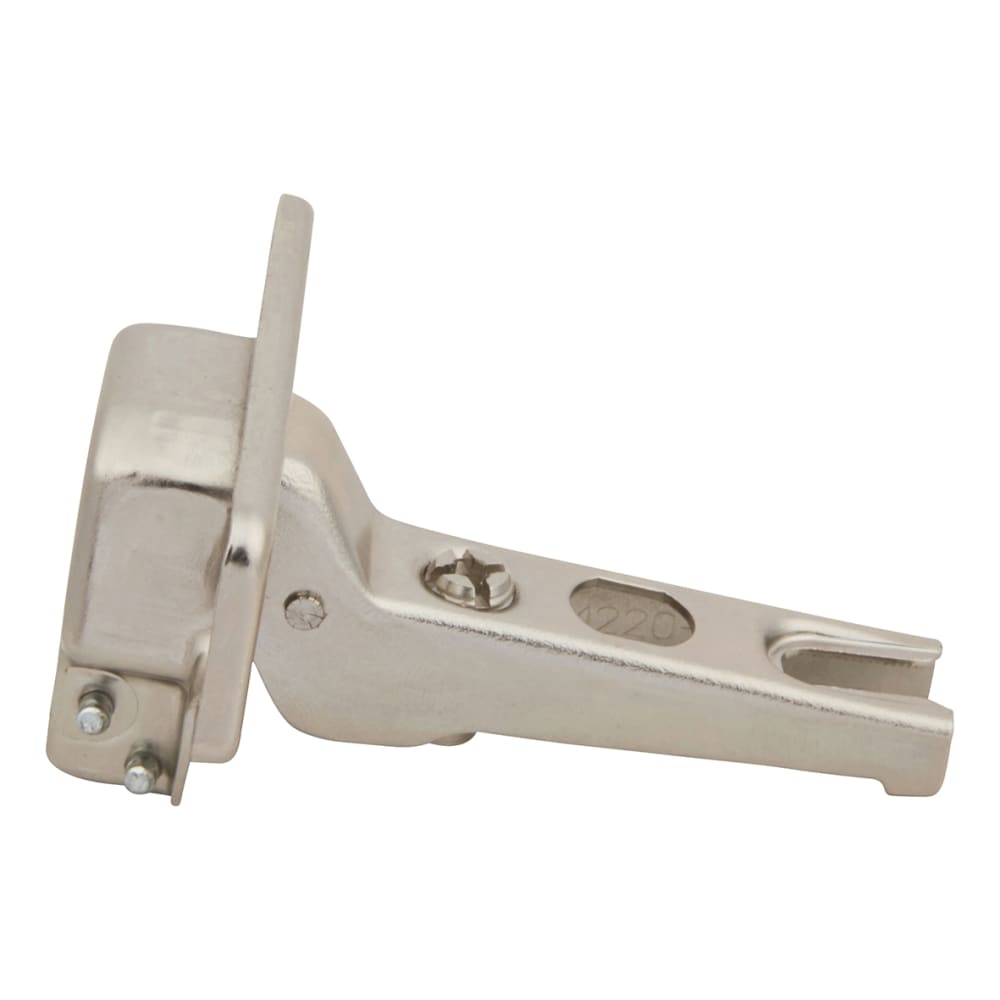

Blum Slide On MODUL Cabinet Hinge Pack - 100° - Sprung - Half Overlay - Zinc Plated - Pair
0.0
(0)
117 in stock
Blum Part Code: 91M2650
Select Application
Select
Buy in bulk & save up to 10%
Free returns within 28 days
About this product
- Blum Part Code: 91M2650
- Ideal for use on kitchen, bathroom, & household cabinets
- Half overlay - where two cabinet doors meet in the middle of a carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately

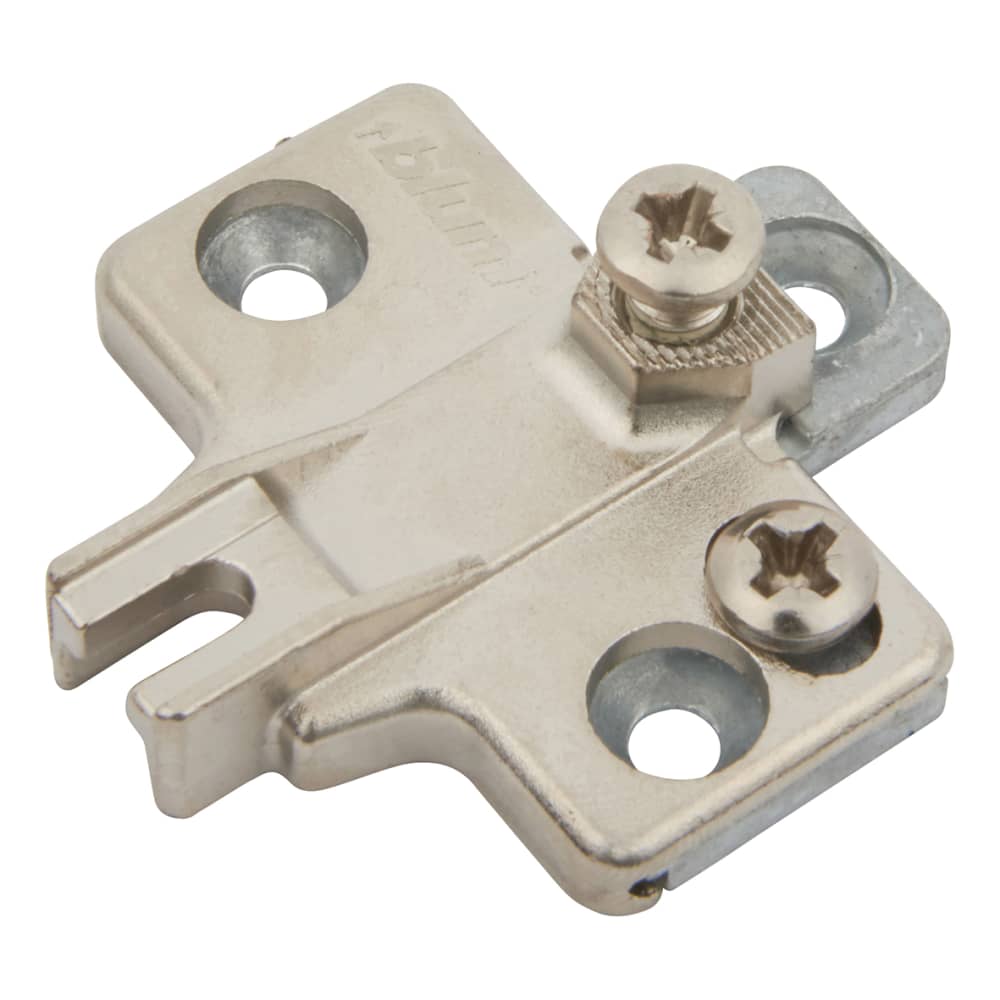

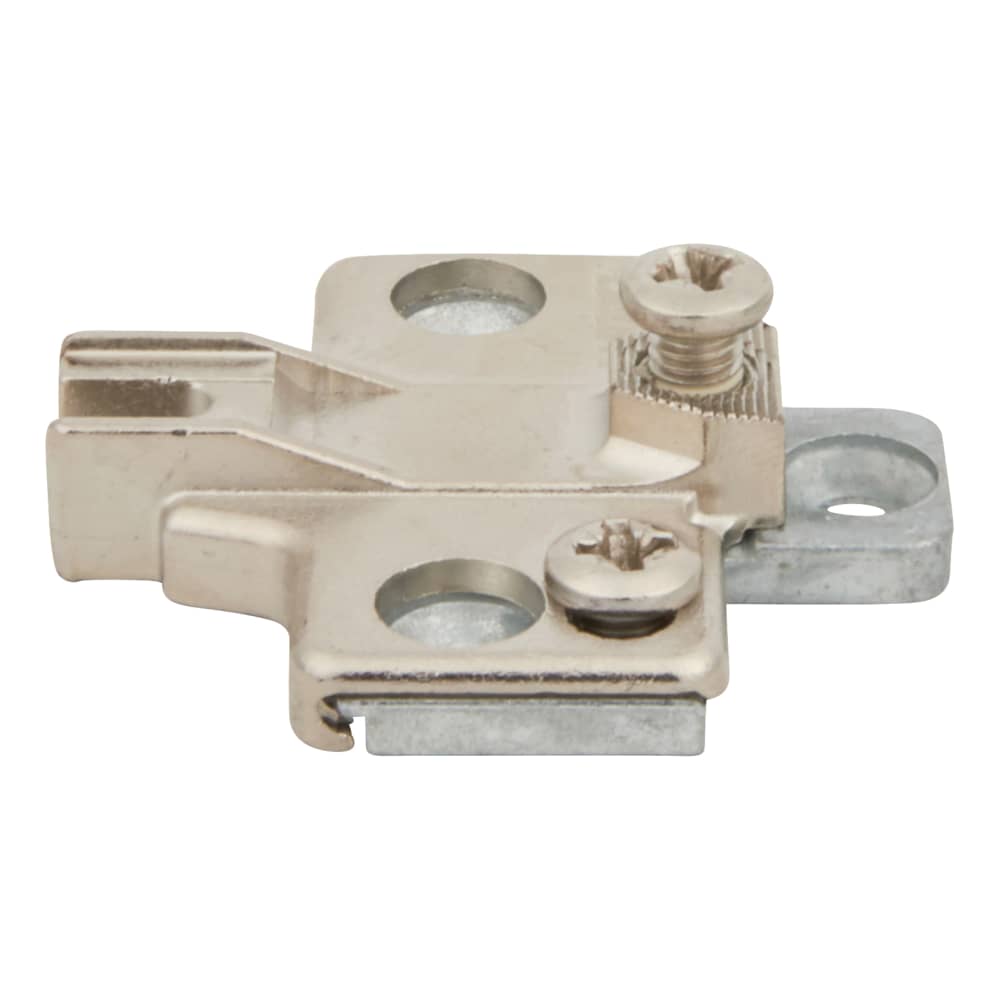

- Supplied with a 0mm MODUL spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
About this product
- Blum Part Code: 91M2650
- Ideal for use on kitchen, bathroom, & household cabinets
- Half overlay - where two cabinet doors meet in the middle of a carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm MODUL spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Half Overlay
Depth Adjustment (mm)
+/-2
Finish
Zinc Plated
Fixing Method
Slide On
Height Adjustment (mm)
+/-2
Option
Hinge and Mounting Plate Set
Range
MODUL
Spacing (mm)
0
Sprung
Sprung
Suit Carcass (mm)
18
Suit Door Thickness (mm)
16-24
Type
Concealed Kitchen Cabinet Hinge
MPN
4127083 / 195H7100
Material
Mild Steel
Pack Quantity
2
