SKU: 439368

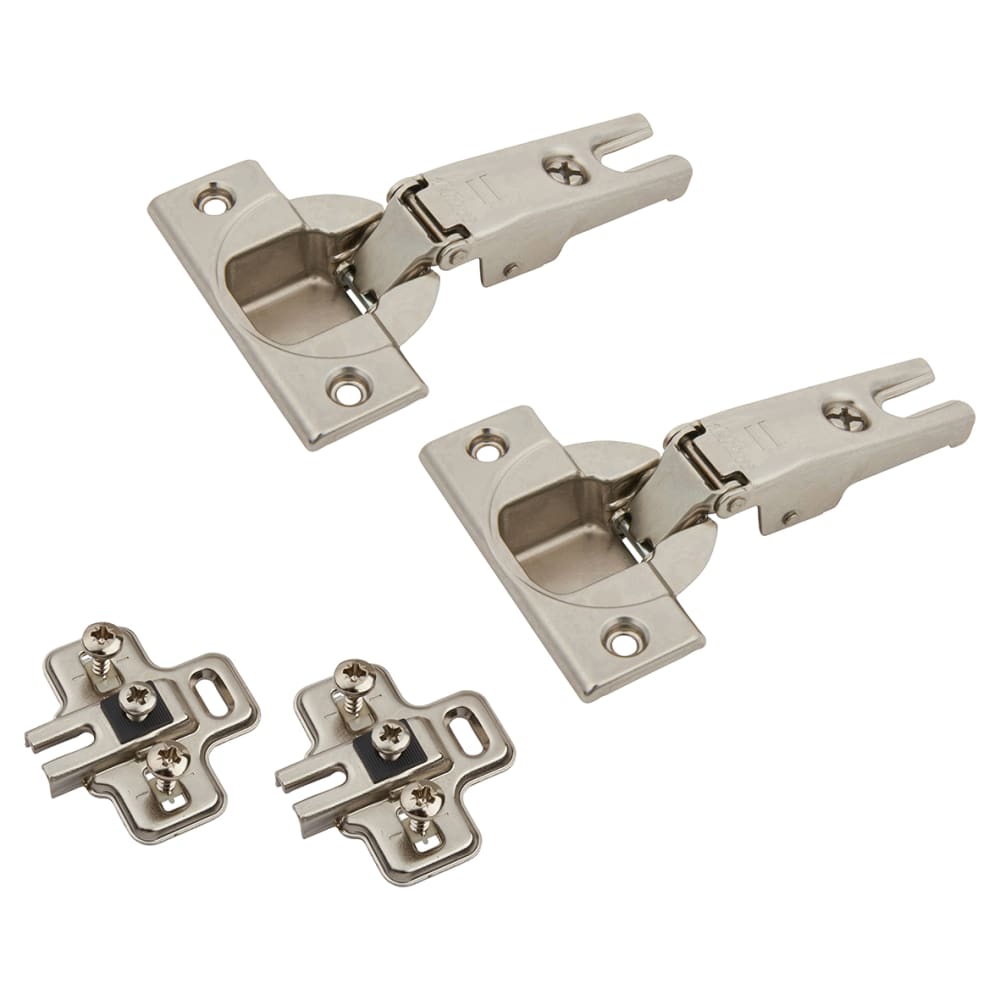

Blum MODUL Refrigerator Facade Cabinet Hinges & Mounting Plates - 95° - Sprung - Overlay - Pair
4.0
(1)
32 in stock
Blum Part Code: 91K9550
Select Option
Buy in bulk & save up to 10%
- Blum Part Code: 91K9550
- Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit an 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
3/-2
Finish
Zinc Plated
Fixing Method
MODUL
Option
Hinge and Mounting Plate Set
Range
MODUL Slide-on
Spacing (mm)
0
Sprung
Sprung
Suit Carcass (mm)
16-32
Suit Door Thickness (mm)
16-32
Type
Concealed Kitchen Cabinet Hinge
MPN
439368
Material
Mild Steel
Pack Quantity
1 Pair
- Blum Part Code: 91K9550
- Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit an 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
3/-2
Finish
Zinc Plated
Fixing Method
MODUL
Option
Hinge and Mounting Plate Set
Range
MODUL Slide-on
Spacing (mm)
0
Sprung
Sprung
Suit Carcass (mm)
16-32
Suit Door Thickness (mm)
16-32
Type
Concealed Kitchen Cabinet Hinge
MPN
439368
Material
Mild Steel
Pack Quantity
1 Pair

- Blum Part Code: 71B3550
- Ideal for use on kitchen cabinets, bathroom cabinets, & furniture cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Blumotion: Includes integrated soft close
- Diameter: 35mm
- Arm cover plates to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
3/-2
Finish
Zinc Plated
Fixing Method
CLIP
Option
Hinge and Mounting Plate Set
Range
CLIP top BLUMOTION
Soft Close
Yes
Suit Door Thickness (mm)
16-26
Type
Concealed Kitchen Cabinet Hinge
MPN
71B3550
Material
Mild Steel
Pack Quantity
1 Pair

- Blum Part Code: 71B3550
- Ideal for use on kitchen cabinets, bathroom cabinets, & furniture cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Blumotion: Includes integrated soft close
- Diameter: 35mm
- Arm cover plates to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
3/-2
Finish
Zinc Plated
Fixing Method
CLIP
Option
Hinge and Mounting Plate Set
Range
CLIP top BLUMOTION
Soft Close
Yes
Suit Door Thickness (mm)
16-26
Type
Concealed Kitchen Cabinet Hinge
MPN
71B3550
Material
Mild Steel
Pack Quantity
1 Pair


About this product
- Blum Part Code: 91K9550
- Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit an 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
About this product
- Blum Part Code: 91K9550
- Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
- Overlay - Where the cabinet door fully overlays the carcass
- Sprung - pulls the door fully closed without the need for a catch
- MODUL - combined slide-on and screw-fix
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit an 18mm carcass, allowing easy & precise adjustment after fitting the hinge
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
+3/-2
Finish
Zinc Plated
Fixing Method
MODUL
Option
Hinge and Mounting Plate Set
Range
MODUL Slide-on
Spacing (mm)
0
Sprung
Sprung
Suit Carcass (mm)
16-32
Suit Door Thickness (mm)
16-32
Type
Concealed Kitchen Cabinet Hinge
MPN
439368
Material
Mild Steel
Pack Quantity
1 Pair
