What is a concealed door closer?

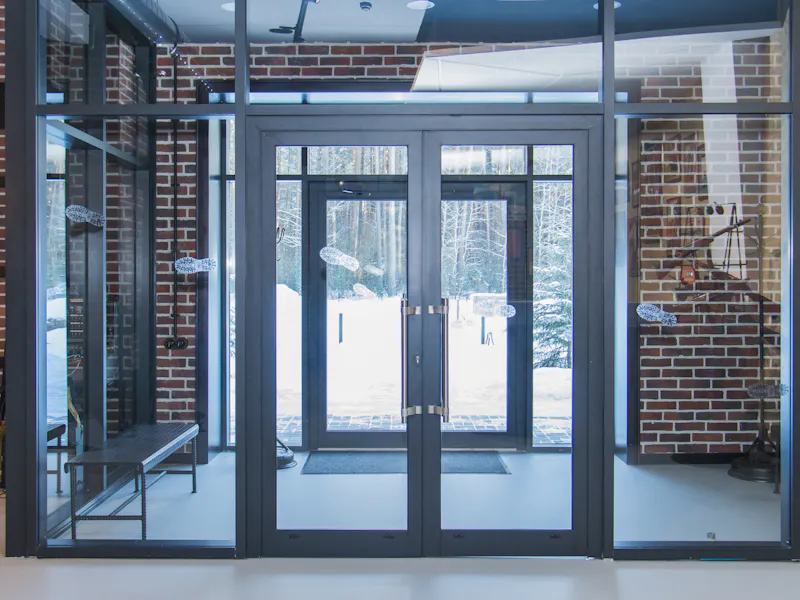

A concealed door closer is designed to remain hidden from view when the door is closed. They are fitted within the door leaf or frame to automatically close the door after opening. Concealed closers are installed in environments where maintaining a clean appearance and ensuring effective door control is important. They are also available in double action variants, which control doors that swing in both directions.
Can concealed door closers be used on fire doors?
Yes, certain concealed door closers are designed and tested for fire-door applications. Suitability depends on the closer having the appropriate testing, certification and field of application for the intended door and installation. Fitting fire doors with certified door closers, as well as intumescent and smoke seals, helps to maintain full fire door integrity.
What to look for in a concealed fire door closer
It’s important to consider a range of factors when choosing a concealed fire door closer to ensure a balance between seamless design and certified fire-safety compliance.
Fire door suitability
Concealed door closers used on fire doors must have the appropriate testing and certification for the intended application. The field of application must be carefully verified to confirm their suitability for use on FD60 fire doors and compatibility with the specific door and installation.
Opening force
The opening force of concealed fire door closers should be kept as low as practicable while ensuring the door closes reliably and securely. Premium double-action concealed closers feature cam-action technology to assist BS 8300 compliance.
A complete, tested system
Choosing a concealed door closer that’s part of a complete, tested system helps to simplify specification and installation. All-in-one complete kits, including the concealed closer, top and bottom pivots, intumescent seals and smoke seals, give greater confidence in overall fire safety compliance.
Double-action operation
Some concealed door closers offer double-action operation, which is ideal for environments where two-way opening and discreet hardware is preferred. Double-action closers allow doors to swing smoothly in both directions before returning them to the closed position.
How does the ITS.11204.DAX address these considerations?

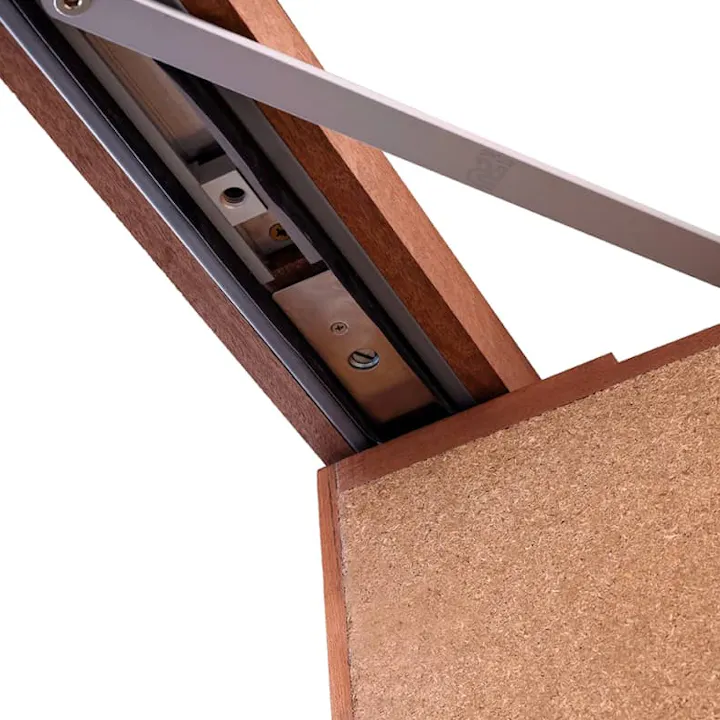

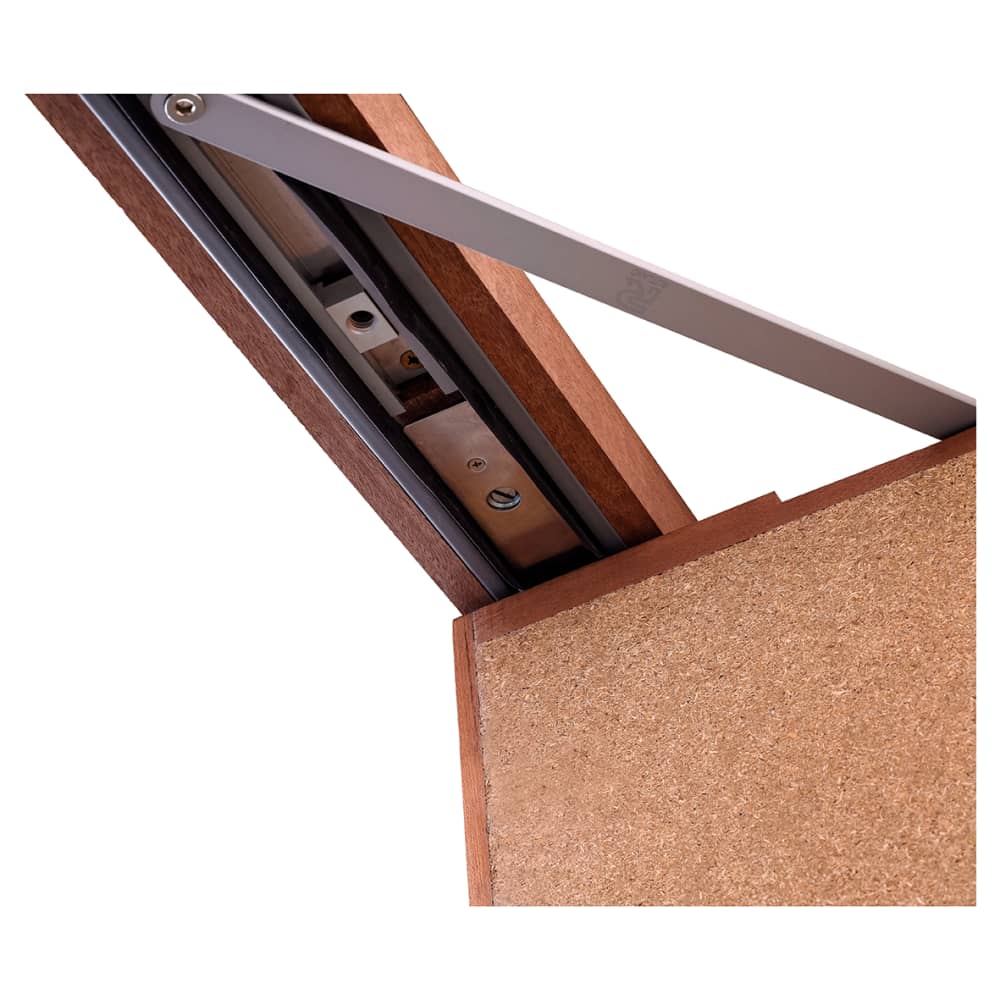

Developed in response to customer feedback and common challenges associated with existing concealed closers, Rutland’s ITS.11204.DAX Double Action Concealed Fire Door Closer brings several key components together in one factory-tested system. The all-in-one complete kit includes the closer, pivots, and fire door seals and is suitable for use on FD60 fire doors. Its concealed, slimline design helps maintain the appearance and structure of the door, while its proven cam-action technology supports easier opening. The closer allows doors to open up to 110° in both directions for smooth and controlled double action operation, with cam-action technology supporting compliance with BS 8300 guidance.
Choose a concealed door closer with IronmongeryDirect
Choosing a concealed door closer involves evaluating aesthetics, usability, and safety requirements. At IronmongeryDirect, we’re proud to supply a range of door closers, as well as the ITS.11204.DAX Double Action Concealed Closer by Rutland, helping you to find a solution that meets your aesthetic and functional needs.
FAQs
Are concealed door closers compliant with UK fire safety standards?
Not all concealed door closers are compliant with UK fire safety standards, but closers that are tested and certified for fire door applications can help maintain the door’s fire resistance and integrity.
Do fire rated doors need closers?
Most fire-rated doors require a self-closing device to ensure the door automatically shuts. It’s important to choose an appropriate closer for the specific fire door application to help contain smoke and fire and protect escape routes.
What is the best concealed door closer for fire doors?
An excellent concealed door closer option for fire doors is Rutland’s ITS.11204.DAX, which offers double-action operation, suitability for FD60 fire doors, and factory-tested compatibility for all components.
What are common challenges with concealed door closers?
Common challenges with concealed door closers include difficulties with installation, specification, and component compatibility. When correctly specified and installed, concealed door closers are an excellent choice for maintaining a minimalist appearance and reliable door control.
What are the benefits of a concealed door closer?
The benefits of concealed door closers include a sleek appearance, discreet installation, and controlled door closing. They’re a great choice for environments where maintaining a clean aesthetic and ensuring effective door control are important.
