SKU: 822643

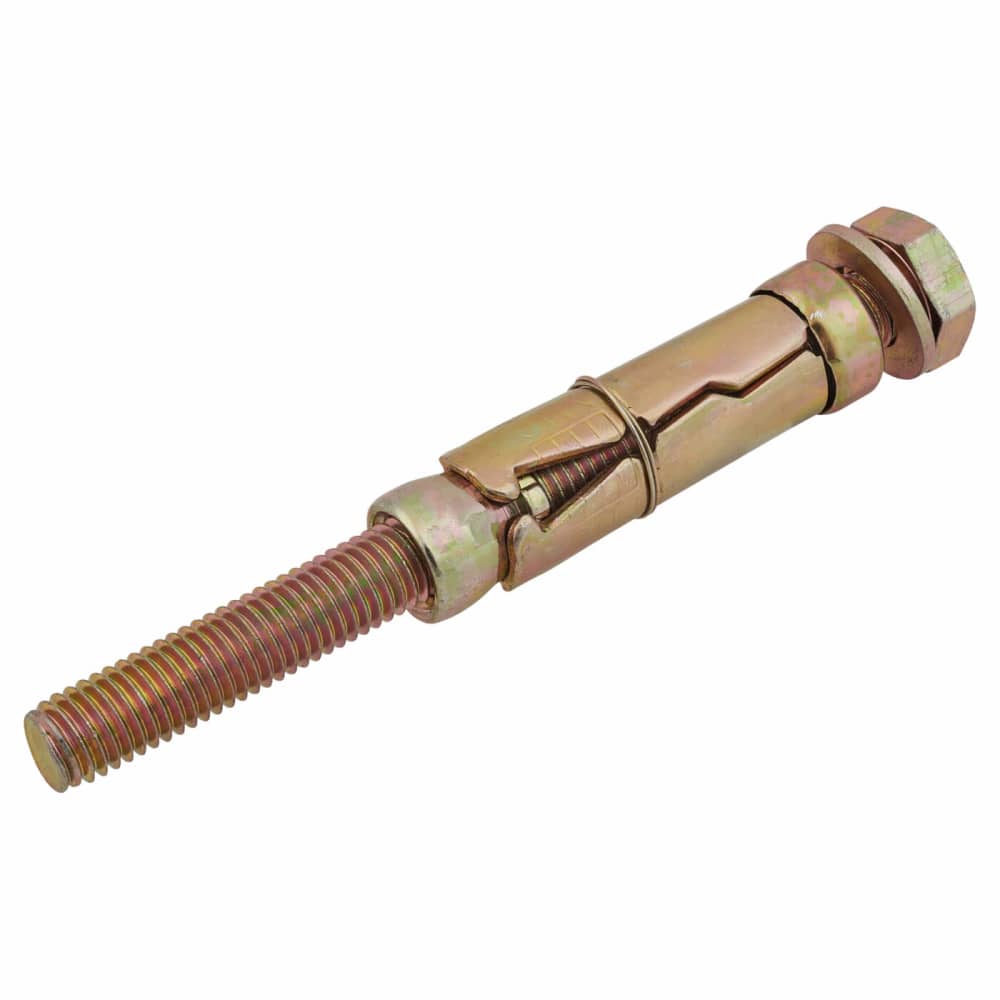

TIMCO Loose Bolt Shield Anchor - M10 x 50mm - Pack of 14
4.0
(1)
3 in stock
Loose bolt shield anchor ideal for fixing through the fixture once the shield has been installed into substrate
Select Size (mm)
Buy in bulk & save up to 5%
About this product
- Loose bolt shield anchor ideal for fixing through the fixture once the shield has been installed into substrate
- Compatible with most types of metric threaded components
- For use in most masonry: concrete, brick and stone
- Three segmented expansion anchor
- Versatile loose bolt with all thread stud
- Torque controlled
- Bolt grade 8.8
- Made from durable carbon steel with a zinc and yellow finish
- Easy to use - once shield is in place, insert bolt through fixing into shield and tighten to required torque
Specification & Documentation
Bolt Size (mm)
10
Drill Diameter (mm)
12
Fixing Thickness (mm)
50
Hole Depth (mm)
70
Material
Carbon Steel
Pack Quantity
14
Type
Shield Anchors
Gauge
M10
Length (mm)
110
Size (mm)
M10 x 50
Documents
About this product
- Loose bolt shield anchor ideal for fixing through the fixture once the shield has been installed into substrate
- Compatible with most types of metric threaded components
- For use in most masonry: concrete, brick and stone
- Three segmented expansion anchor
- Versatile loose bolt with all thread stud
- Torque controlled
- Bolt grade 8.8
- Made from durable carbon steel with a zinc and yellow finish
- Easy to use - once shield is in place, insert bolt through fixing into shield and tighten to required torque
Specification & Documentation
Bolt Size (mm)
10
Drill Diameter (mm)
12
Fixing Thickness (mm)
50
Hole Depth (mm)
70
Material
Carbon Steel
Pack Quantity
14
Type
Shield Anchors
Gauge
M10
Length (mm)
110
Size (mm)
M10 x 50
Documents
