SKU: 254702

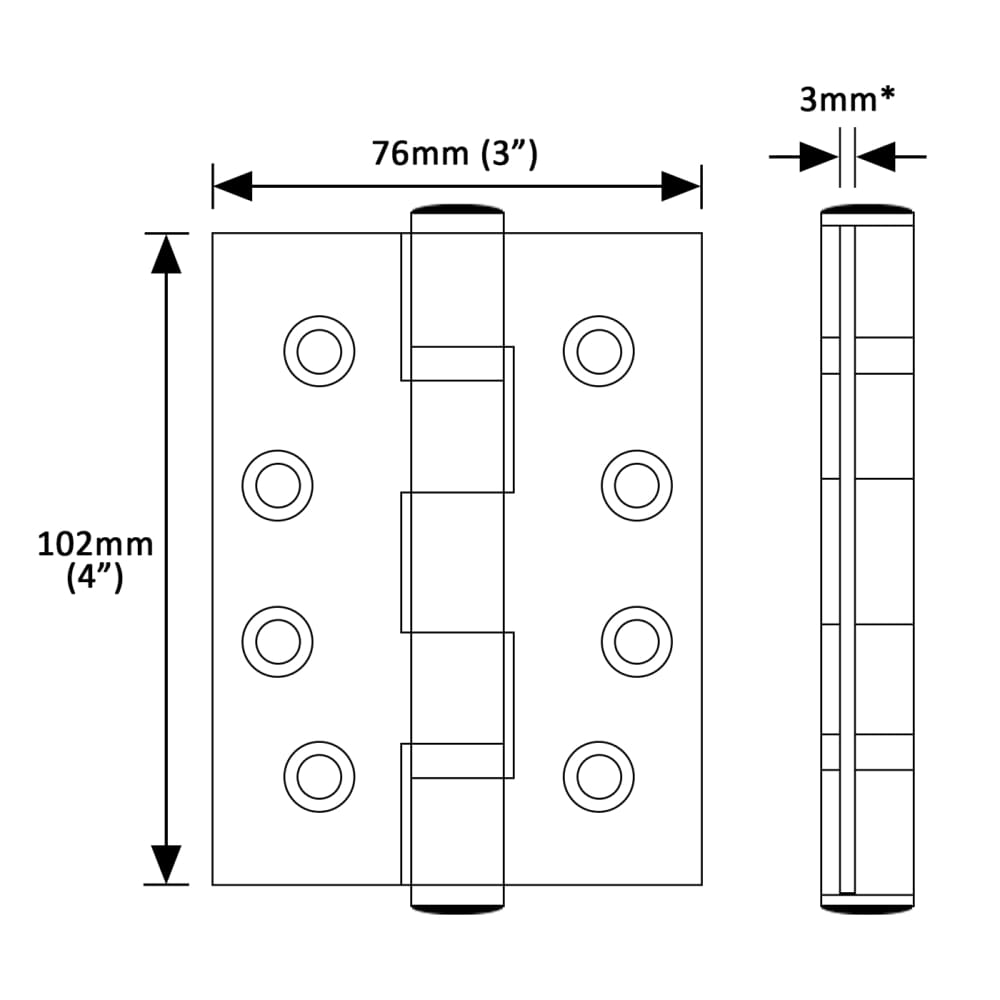

Enduro Twin Ball Bearing Grade 13 Butt Fire Door Hinge - 102 x 76 x 3mm - 316 Sat Stainless - Pair
4.6
(39)
378 in stock
Fire door hinge suitable for doors up to 120kg
Select Finish
Select Steel Rating
Buy in bulk & save up to 9%
About this product
- Fire door hinge suitable for doors up to 120kg
- 60 minute fire rating
- BS EN Grade 13
- Heavy duty - for high use fire doors in public buildings
- For interior/exterior use
- All our fire door hinges are CE marked
- NOTE: Intumescent pads should be used to ensure adherence to fire regulations
- Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
- 25 year guarantee Manufactured from Grade 316 stainless steel, making these hinges an ideal choice for exterior doors, kitchen areas, damp areas, sports centres and marine locations.
About this product
- Fire door hinge suitable for doors up to 120kg
- 60 minute fire rating
- BS EN Grade 13
- Heavy duty - for high use fire doors in public buildings
- For interior/exterior use
- All our fire door hinges are CE marked
- NOTE: Intumescent pads should be used to ensure adherence to fire regulations
- Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
- 25 year guarantee Manufactured from Grade 316 stainless steel, making these hinges an ideal choice for exterior doors, kitchen areas, damp areas, sports centres and marine locations.
Specification & Documentation
BSEN Grade
13
British Standard
Yes
CE Rated
Yes
Certifire
Yes
Corners
Square
Duty
Heavy
Finish
Satin Stainless Steel
Finish Group
Stainless Steel
Fire Rating
60
Max Door Weight (kg)
120
Size Range (mm)
4 Inch/100mm
Size (mm)
102 x 76 x 3
Steel Rating
316
Type
Butt Hinge
Use
Interior & Exterior
Material
316 Stainless Steel
Option
Ball Bearing
Length (mm)
102
Pack Quantity
2
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Gryfo - 3 years ago
Quality hinge
Good quality hinge to replace imperial old hinge no cutting required
Was this review helpful?
Verified customer
Bluemax - 4 years ago
Seem sturdy
These seem solid but I'm using them for a completely different use. Using them for a custom built rear loading ramp.
Was this review helpful?
Verified customer
ChippyPete - 5 years ago
Excellent, smooth and quality hinges
Got these to hang heavy 30 minute fire doors. Perfect for the job and look very smart. Excellent smooth operation and the screws provided were first class.
Was this review helpful?
Verified customer
Anonymous - 5 years ago
Wait and see
I asked Ironmongery Direct for a recommended hinge that could withstand salt in the air - we are near the coast in Cornwall. They suggested these hinges which were delivered promptly and look to be very good quality, complete with stainless steel screws. However, the real test will come later, after the winter storms, so ask me again this time next year and I'll provide an update.
Was this review helpful?
Verified customer
R C Grant - 5 years ago
Perfect for straight swap of brass hinges
So good for very heavy outside doors fit and forget
Was this review helpful?
Verified customer
Page 1 of 4
Questions
ogdenmatthew - 4 years ago
Layla
Good Morning, I hope you are well You should be able to remove the top and bottom pin by below: https://www.youtube.com/watch?v=ZoH5I-tkic8 I hope this helps Have a lovely day
Was this question helpful?
Page 1 of 1
