SKU: 606377

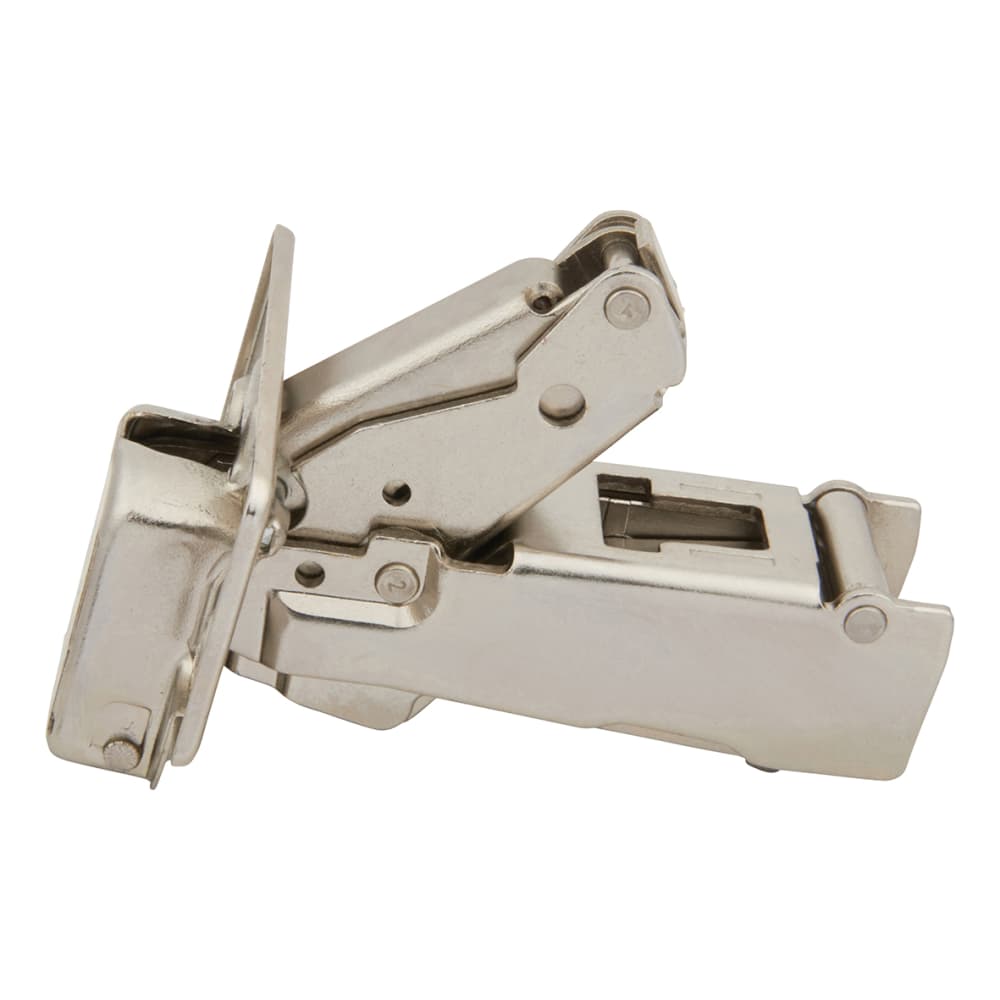

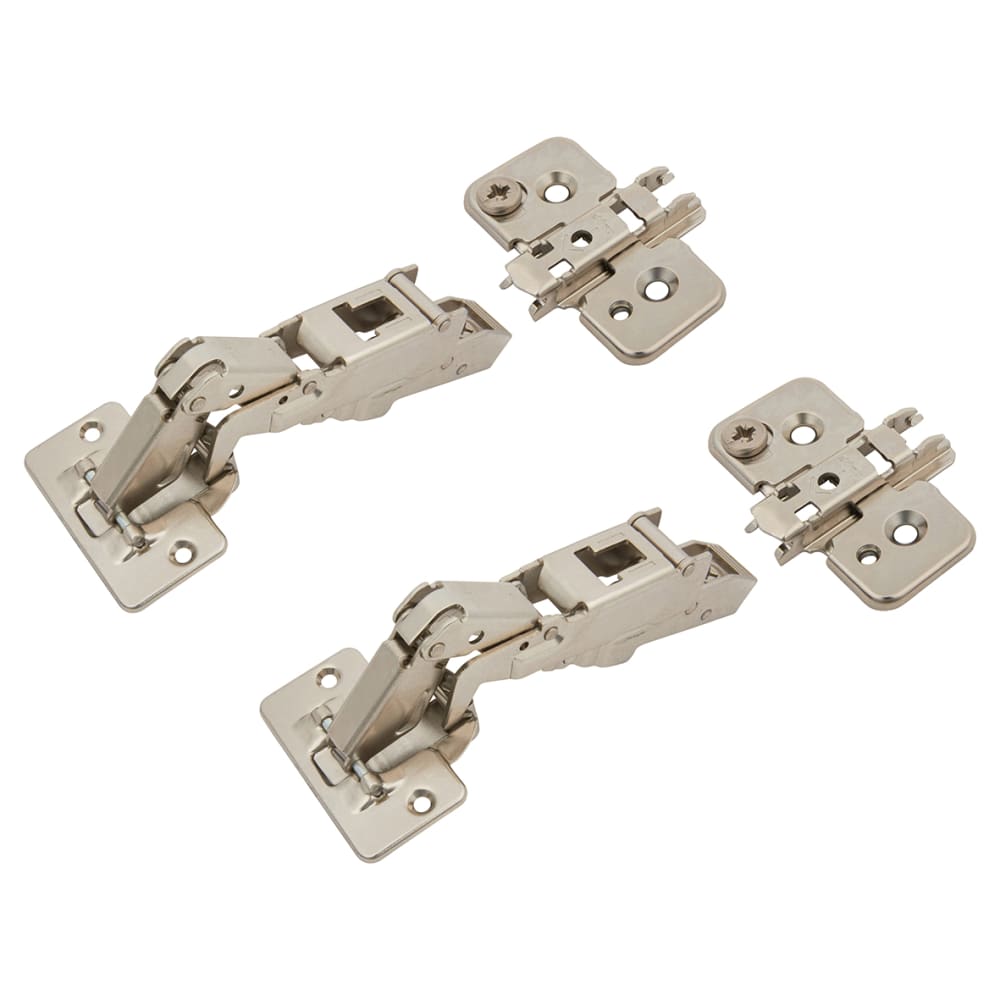

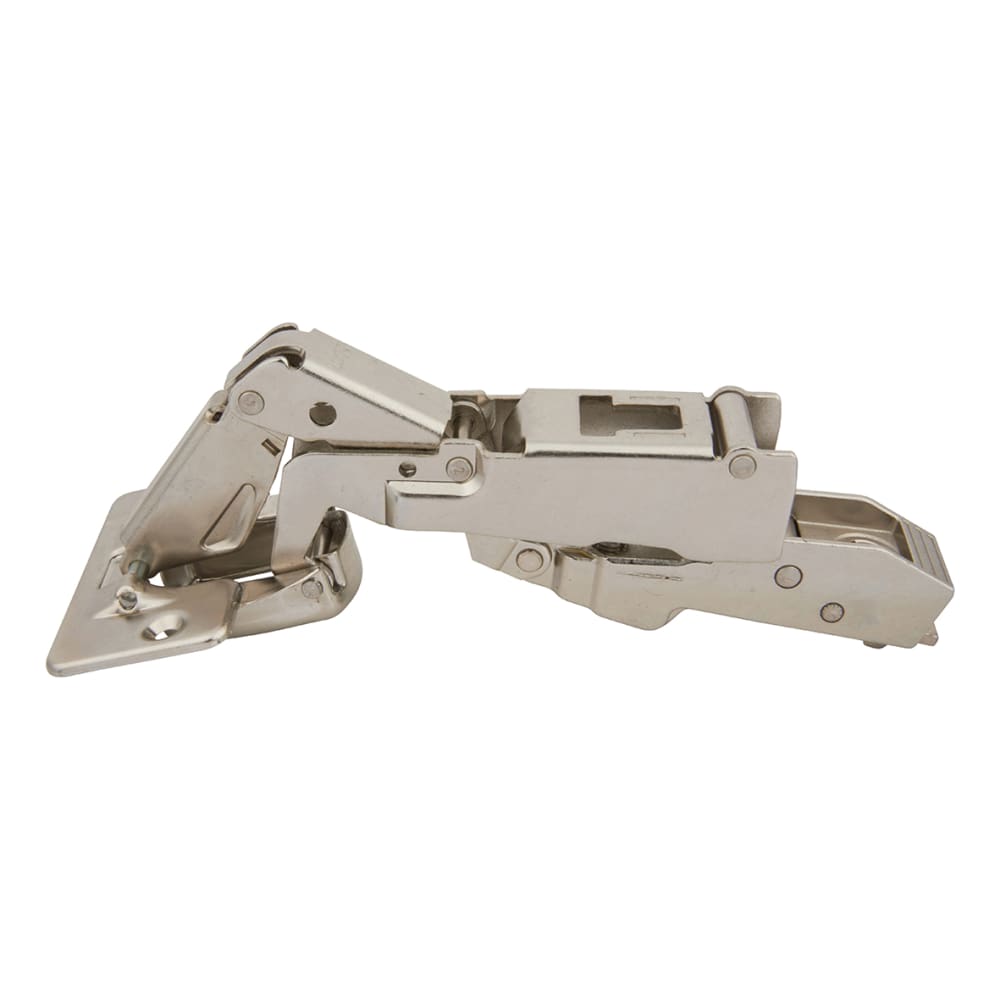

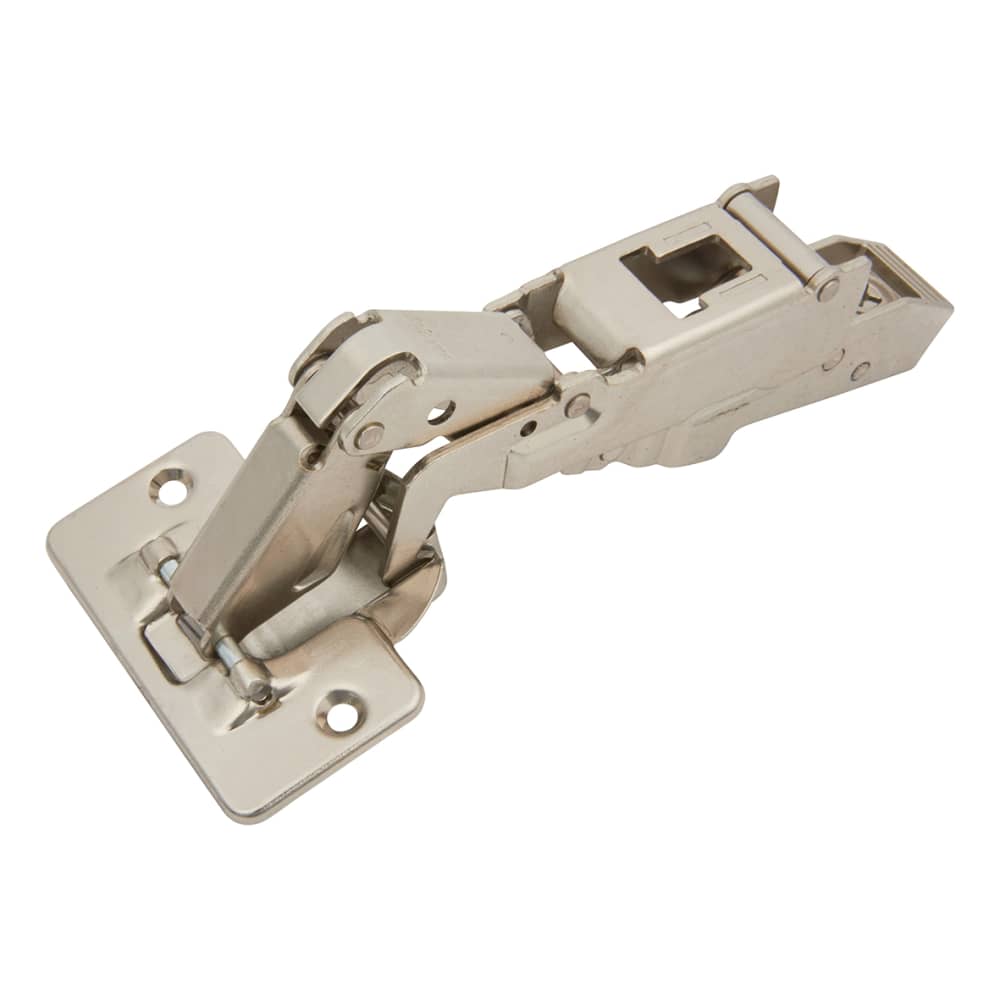

Blum CLIP Top Cabinet Hinge Pack with 0mm Mounting Plates - 170° - Un-Sprung - Overlay - Pair
4.8
(4)
243 in stock
Blum Part Code: 70T6550
Select Sprung
Buy in bulk & save up to 10%
About this product
- Blum Part Code: 70T6550
- Ideal for use on kitchen, bathroom, & household cabinets
- Overlay - where the cabinet door fully overlays the carcass
- CLIP Top - is a concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately

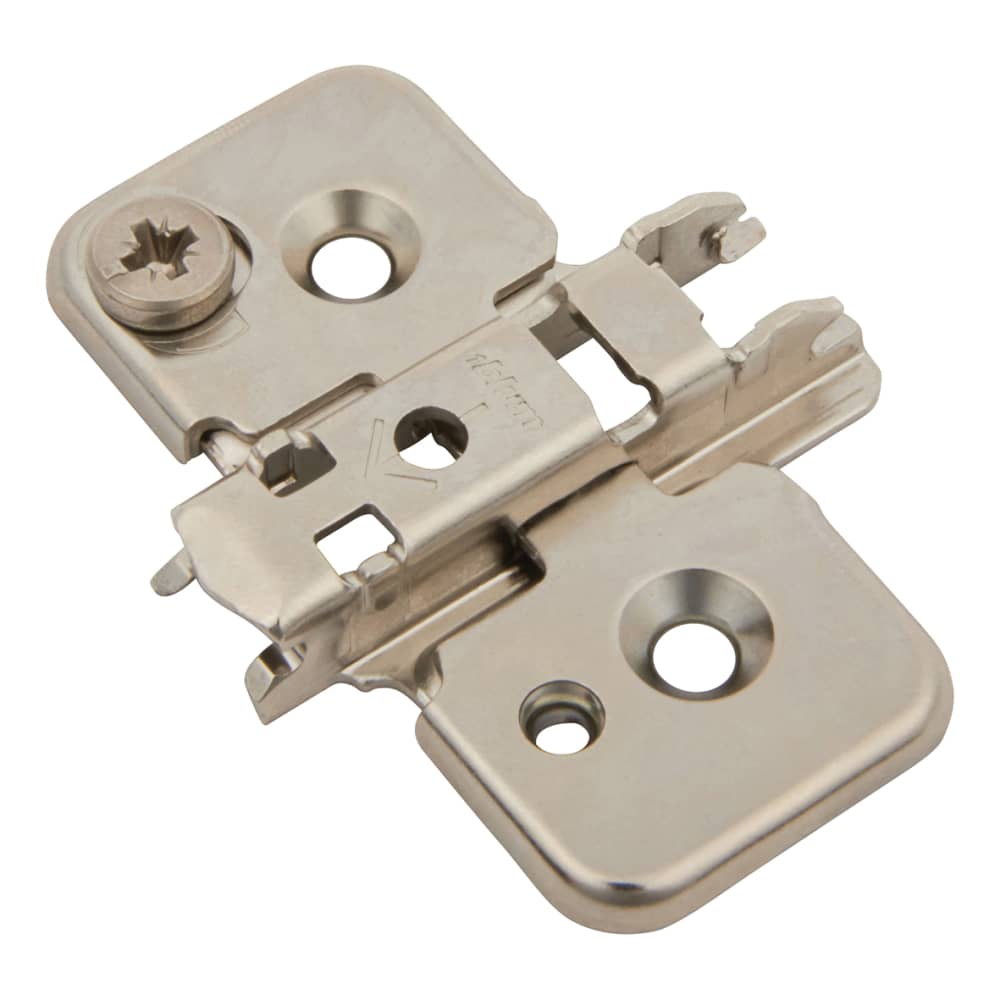

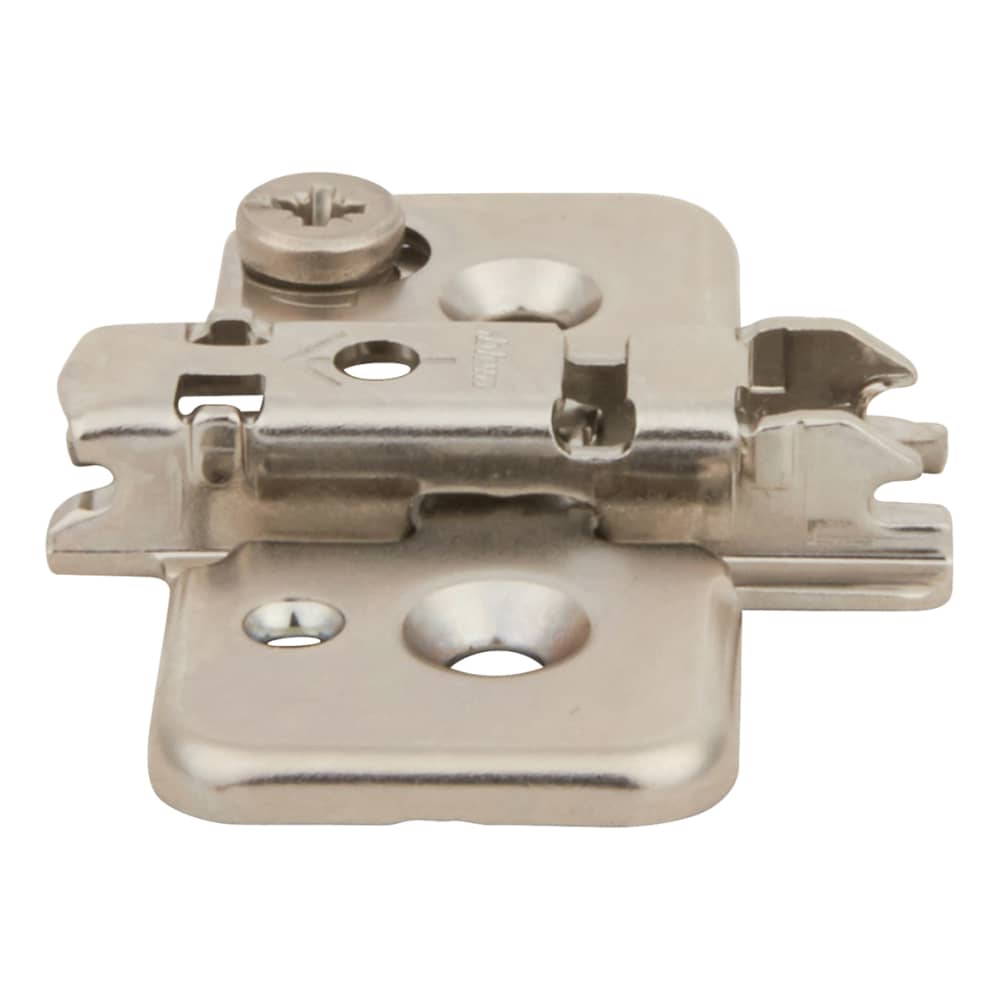

- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
- Safety Information - If young children have access to furniture with a wide angle hinges, then the 155 degree 0-Protrusion hinge is recommended
About this product
- Blum Part Code: 70T6550
- Ideal for use on kitchen, bathroom, & household cabinets
- Overlay - where the cabinet door fully overlays the carcass
- CLIP Top - is a concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed
- Diameter: 35mm
- Arm cover plates & soft close mechanism to be ordered separately
- Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
- Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
- Lifetime guarantee
- Safety Information - If young children have access to furniture with a wide angle hinges, then the 155 degree 0-Protrusion hinge is recommended
Specification & Documentation
Application
Overlay
Depth Adjustment (mm)
+3/-2
Finish
Zinc Plated
Fixing Method
Clip On
Height Adjustment (mm)
+/-2
Option
Hinge and Mounting Plate Set
Range
CLIP top
Spacing (mm)
0
Sprung
Un-Sprung
Suit Carcass (mm)
18
Type
Concealed Kitchen Cabinet Hinge
MPN
70T6550
Soft Close
No
Material
Mild Steel
Pack Quantity
2
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Skialiski - 2 years ago
Excell
Easy to fit and adjust. Nice to be able to adjust in all direction with screws. Snap into place positively
Was this review helpful?
Verified customer
Anonymous - 5 years ago
Not bad at all !
Had to make a couple of adjustments as I was replacing old hinges, but perfect otherwise!
Was this review helpful?
Verified customer
Danrobo89 - 8 years ago
Perfect
Bought these to use with the “push to open” catches. Worked perfectly
Was this review helpful?
Verified customer
