SKU: 323188

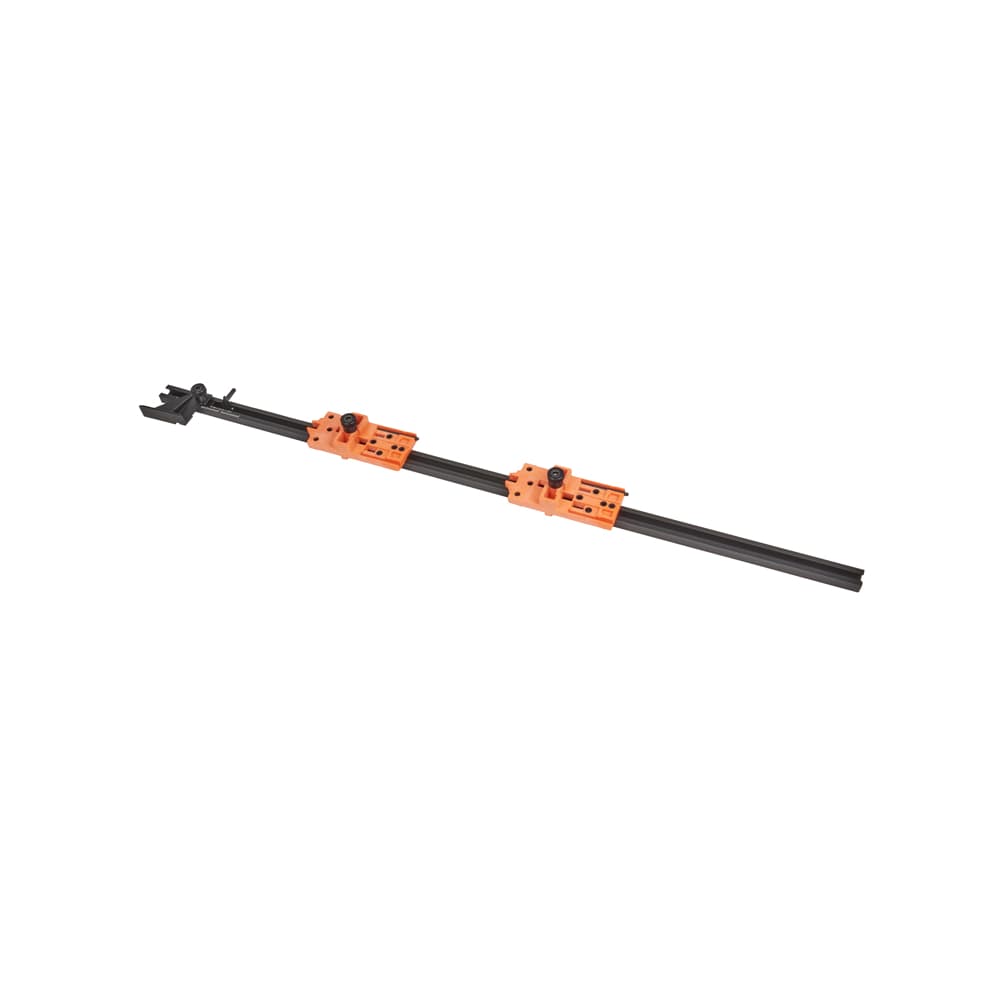

Blum Adjustable Drilling Template Position Transfer for Jig Hinges and Plates
4.6
(10)
4 in stock
Hinge & plate template for transferring cabinet drillings to door & vice versa
This item carries a £4.95 large item surcharge - x1 surcharge per order!
About this product
- Hinge & plate template for transferring cabinet drillings to door & vice versa
- Versatile jig, works with either pre-drilled doors or cabinets
- Adjustable height position & preferred overlay
- Can be used with assembled or unassembled cabinets
- Adjustable stop for various front overlays - calibration makes it easy to set the template
- Includes two templates suitable for inline or cruciform mounting plate drilling
- Ensure doors and cabinets are drilled accurately to match
- Not suitable for die-cast horizontal plates (22mm)
- Contains 1000mm extension rail, 2 x drilling templates and 2 x marking templates (5mm)
About this product
- Hinge & plate template for transferring cabinet drillings to door & vice versa
- Versatile jig, works with either pre-drilled doors or cabinets
- Adjustable height position & preferred overlay
- Can be used with assembled or unassembled cabinets
- Adjustable stop for various front overlays - calibration makes it easy to set the template
- Includes two templates suitable for inline or cruciform mounting plate drilling
- Ensure doors and cabinets are drilled accurately to match
- Not suitable for die-cast horizontal plates (22mm)
- Contains 1000mm extension rail, 2 x drilling templates and 2 x marking templates (5mm)
Specification & Documentation
Type
Drilling Template
Range
CLIP top BLUMOTION
Material
Mild Steel
Option
Drilling Template - Hinges
Pack Quantity
1
Reviews
Sort by:
These reviews are verified by an independent third party for authenticity.
Derrick T - 3 years ago
Brilliant
I'm a professional kitchen fitter and bought this jig for drilling the hinge plate holes in the carcases. Can't praise it enough. Saving approx 3hrs per job. Holes perfect every time.
Was this review helpful?
Verified customer
Keith Pickton - 4 years ago
Brilliant jig by Blum I also have the hinge drilling jig
I’m a kitchen installer and this product works great very accurate jig
Was this review helpful?
Verified customer
B finch - 6 years ago
kitchen business
I brought this to do transfers of blum hinges and plates its accurate makes are life easier perfect .
Was this review helpful?
Verified customer
Page 1 of 1
Questions
mandpcarpentry - 4 years ago
Layla
Good Morning, I hope you are well The Jig itself can not be extended its the drilling position that's adjustable I hope this helps Have a lovely day
Was this question helpful?
Jrock - 5 years ago
Category Manager
Hello, We would only suggest using this with Blum hinges, but other customers have used it with the Klug cabinet hinges, I have video below for more information https://www.youtube.com/watch?v=Junssha60LU Thank you
Was this question helpful?
Page 1 of 1
